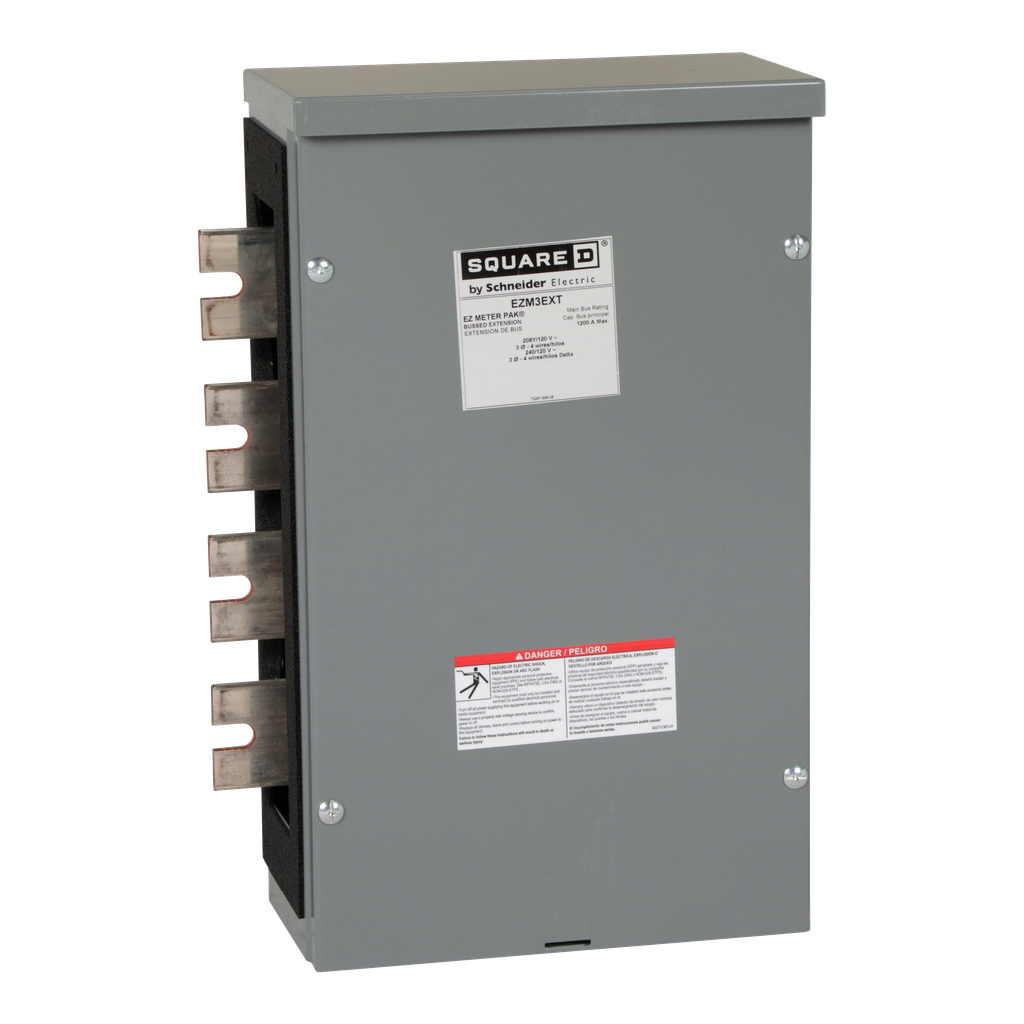

EZM3EXT
Meter accessory, EZ Meter-Pak, bus extension, 1200A, indoor/outdoor, 3 phase, 4 wire, 12in
Square D EZ Meter-Pak devices provide a compact footprint for multi unit construction needs. Square D EZ Meter-Pak bus extensions are an accessory for the EZ Meter-Pak Meter Centers. Bussed extensions can provide separation between enclosures where needed to avoid building obstructions or provide additional space between the main device and the branch unit where needed to meet local utility requirements. A steel enclosure houses four 12in extensions, rated for 208Y/120VAC and 240/120VAC delta and 1200A. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | EZ meter-pak |
|---|---|
| Device Short Name | EZ |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 6.00 in |
| Device Mounting | surface |
| Bus Rated Current | 1200 A |
| Enclosure Material | steel |
| Width | 19.34 in |
| Depth | 6.37 in |
| Line Rated Current | 1200-1200 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Nema Degree Of Protection | NEMA 1 |
