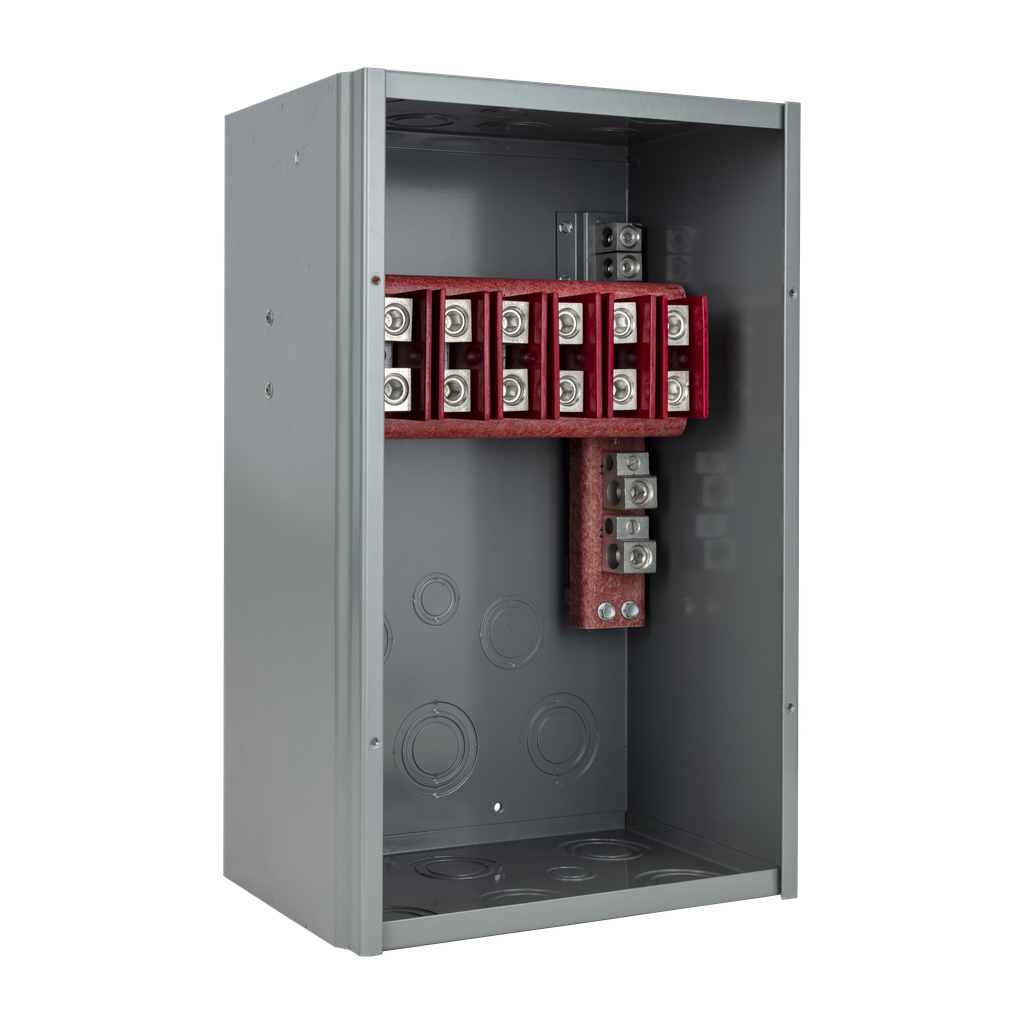

EZM3BTB
Branch terminal box, EZ Meter-Pak, 125A, 3 circuits
Square D EZ Meter-Pak devices provide a compact footprint for multi unit construction needs. Square D EZ Meter-Pak branch terminal boxes provide a connection point for metering configurations. This branch terminal box is rated for 125A and accommodates oversizing conductors of up to three circuits. It mounts above or below a 125A EZM branch meter compartment. It is compliant with UL standards. The steel enclosure is rated NEMA 3R mounted below an EZM branch compartment and NEMA 1 mounted above the compartment.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Meter-Pak |
|---|---|
| Line Rated Current | 125 A |
| Product Or Component Type |
|
| Product Certifications | UL Listed |
| Height | 490 mm |
| Short-Circuit Current | 100 kA |
| Nema Degree Of Protection |
|
| Width | 311 mm |
| Depth | 214 mm |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
