EMS59151

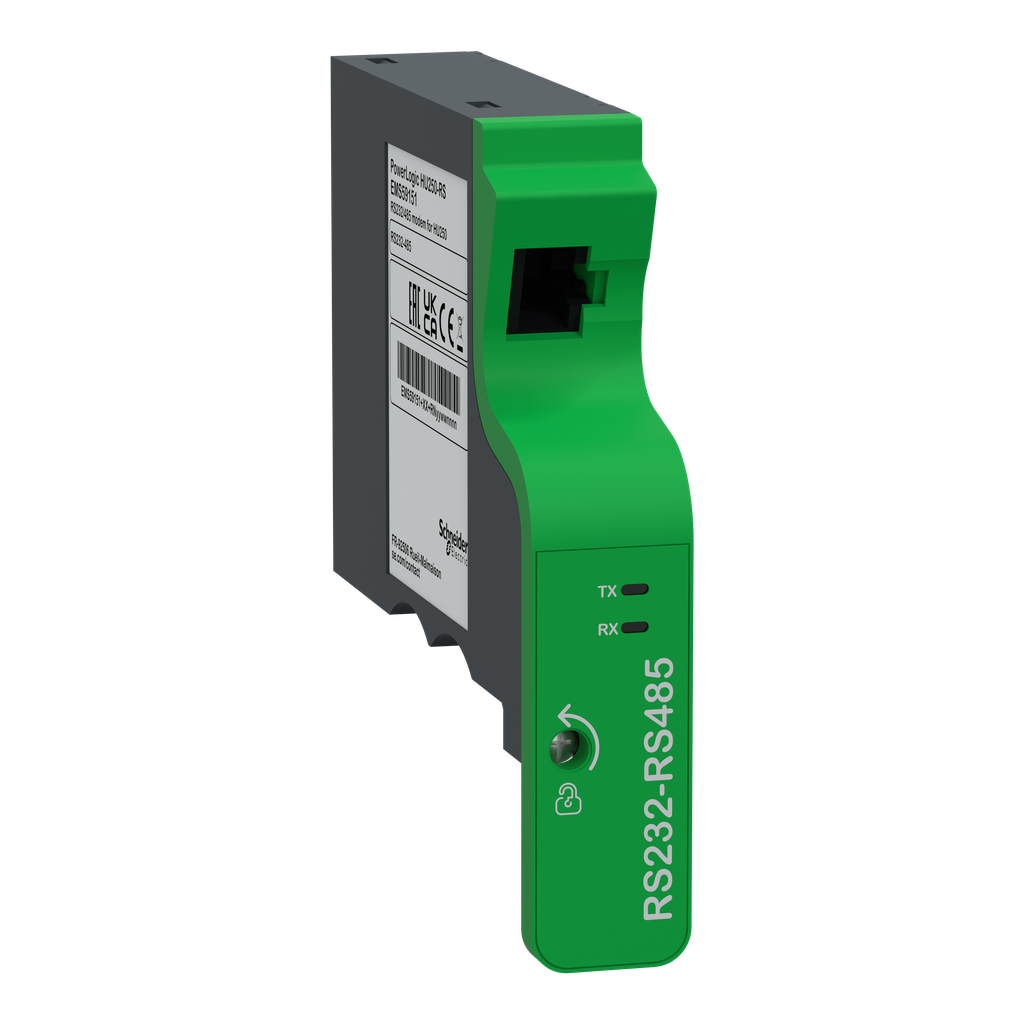

PowerLogic HU250 RS232/422/485 interface box, RJ45
This communication modem box used for HU250 of the Easergy T300 The degree of protection is IK07. It complies with CE. The operating temperature is -40°C to + 85°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 30 mm in height, 115 mm in width and 133 mm in depth.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Easergy T300 |
|---|---|
| Product Or Component Type | modem communication interface |
| Device Short Name | HU250-RS |
| Communication Port Support |
|
| Connector Type | RJ45 |
| Transmission Rate | 38400 bit/s |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1605007 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1605007 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications | CE |
| Ik Degree Of Protection | IK07 IEC 62262 |
| Ambient Air Temperature For Operation | -40-85 °C |
| Height | 30 mm |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % IEC 60068-2-30 |
| Width | 115 mm |
| Depth | 133 mm |
| Net Weight | 0.105 kg |
| Fire Resistance | 850 °C |
| Operating Altitude | 6561.68 ft (2000 m) |
