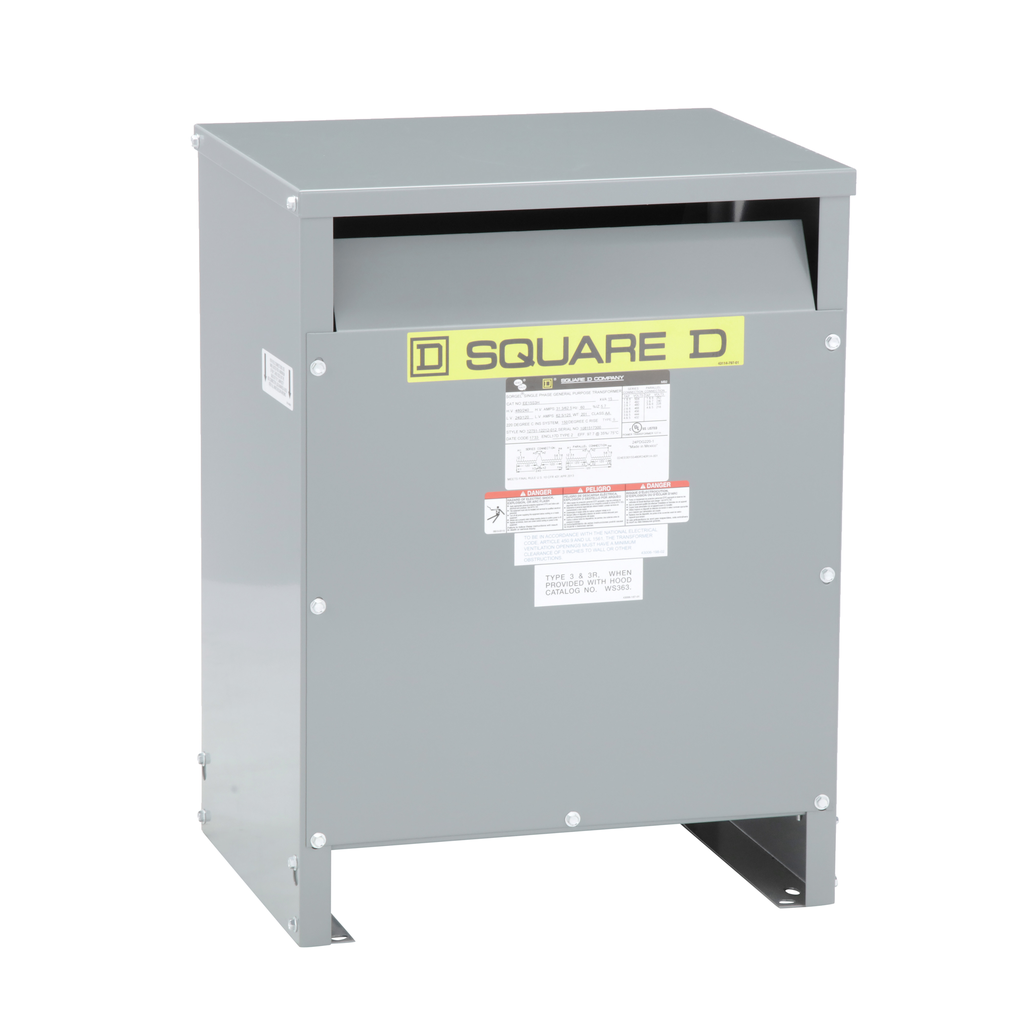

Transformer, dry type, DOE 2016, 15kVA, 1 phase, 240x480V primary, 120/240V secondary, 17D, 150C rise
With Energy Efficient Transformers minimum efficiencies have been established for each size of transformer, and extensive design, testing, and manufacturing time has been spent to ensure each transformer meets or exceeds these efficiencies. The Square D Energy Efficient transformer offering includes all of the popular options including low temperature rise, 115 °C and 80 °C, and aluminum or copper windings. These transformers are part of a complete line of Lean Power products from Schneider Electric. Our power conservation, management and monitoring products, systems, and services help to reduce energy consumption in business and industry environments. This Energy Efficient Transformer is a 1 phase, 15 kVA, that has a primary Voltage of 240 x 480V and a secondary voltage of 120/240V. The Enclosure has a NEMA 2 rating and has a box number of 17D with a insulation temperature of 220 °C. This unit has 6 taps and with FCAN & FCBN tap off of 2.5 % 2+ 4-. The unit is made of aluminium with a 150 °C temperature rise.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Primary Voltage | 240 x 480 V |
|---|---|
| Secondary Voltage | 120/240 V |
| Temperature Rise | 150 °C |
| Number Of Tap-Offs | 6 2.5 % 2+ 4- |
| Product Or Component Type | Energy Efficient Transformer |
| Phase | 1 phase |
| Material | aluminium |
| Rated Power In Va | 15 kVA |
| Nema Degree Of Protection | NEMA 2 |
| Box Number | 17D |
| Insulation Temperature | 220 °C |
| Warranty | 18 months |
| Height | 27 in |
| Net Weight | 97.52 kg |
| Width | 20 in |
| Depth | 16 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
