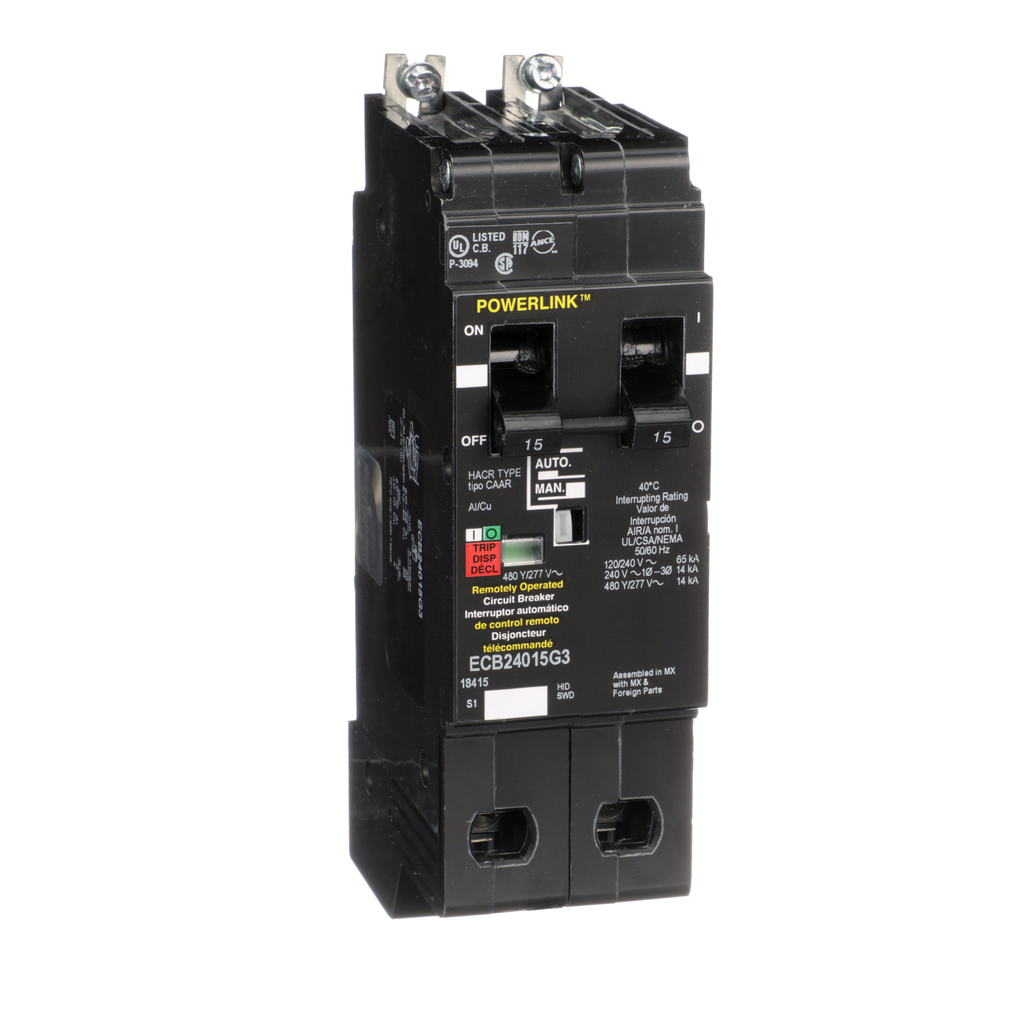

ECB24015G3
Circuit Breaker, PowerLink™, 15A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount
PowerLink™ circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink™ Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 15 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Application |
|
|---|---|
| Trip Unit Technology | thermal-magnetic, standard, LI |
| Range Of Product | Powerlink |
| Circuit Breaker Type | ECB-G3 |
| Accessory / Separate Part Type | motor for circuit-breaker 24 V DC |
| Product Or Component Type | circuit breaker |
| Warranty | 18 months |
| Product Certifications |
|
| Mounting Mode | bolt-on |
| Poles Description | 2P |
| Electrical Connection | bolted connection |
| Number Of Spaces Required | 2 |
| Line Rated Current | 15 A |
| Awg Gauge |
|
| Breaking Capacity |
|
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | 40 °C |
