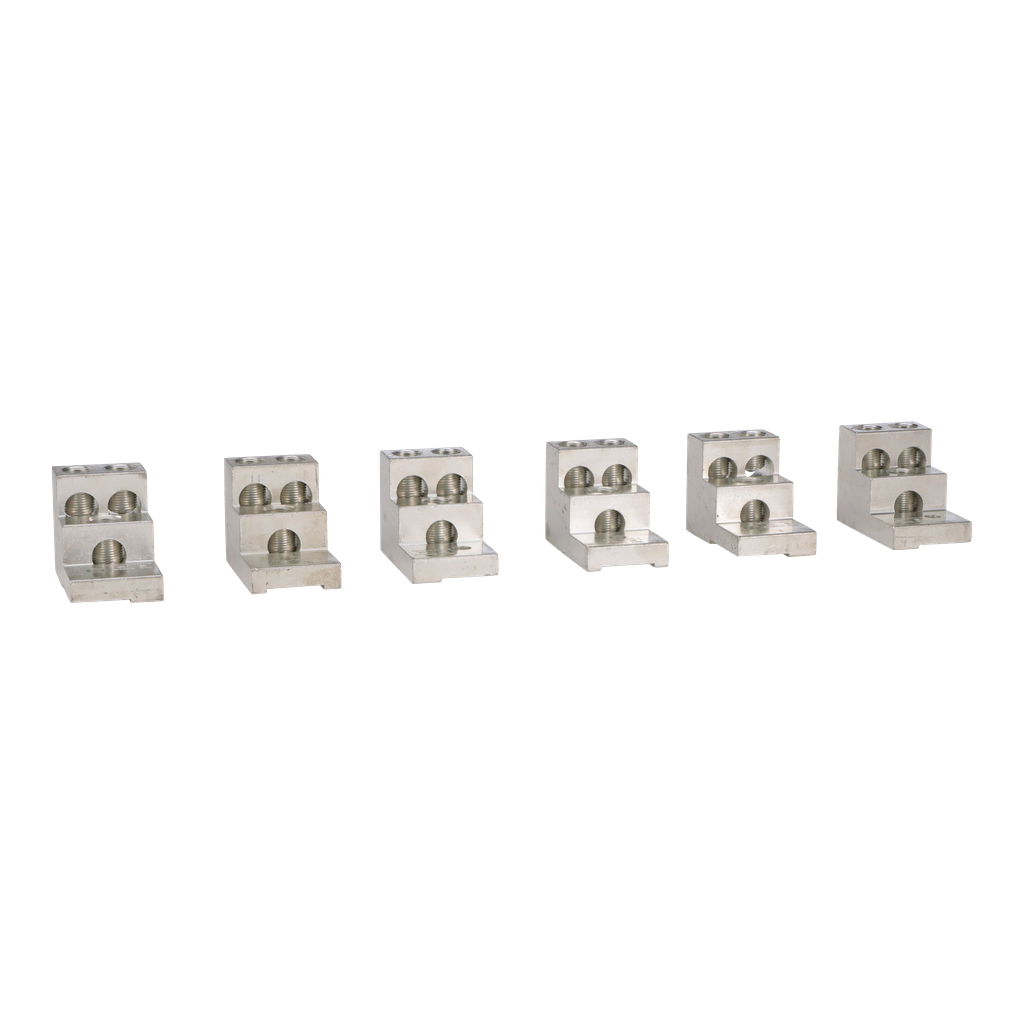

TeSys F contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes. This lug kit contains six lugs for LC1F630 IEC contactors. The DZ2FF6 lugs are rated for three #2 AWG to 600 mcmc wire.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | lug kit |
---|---|
Warranty | 18 months |
Quantity Per Set | set of 6 |
Line Rated Current | 800-800 A |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110807EN_V2 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
