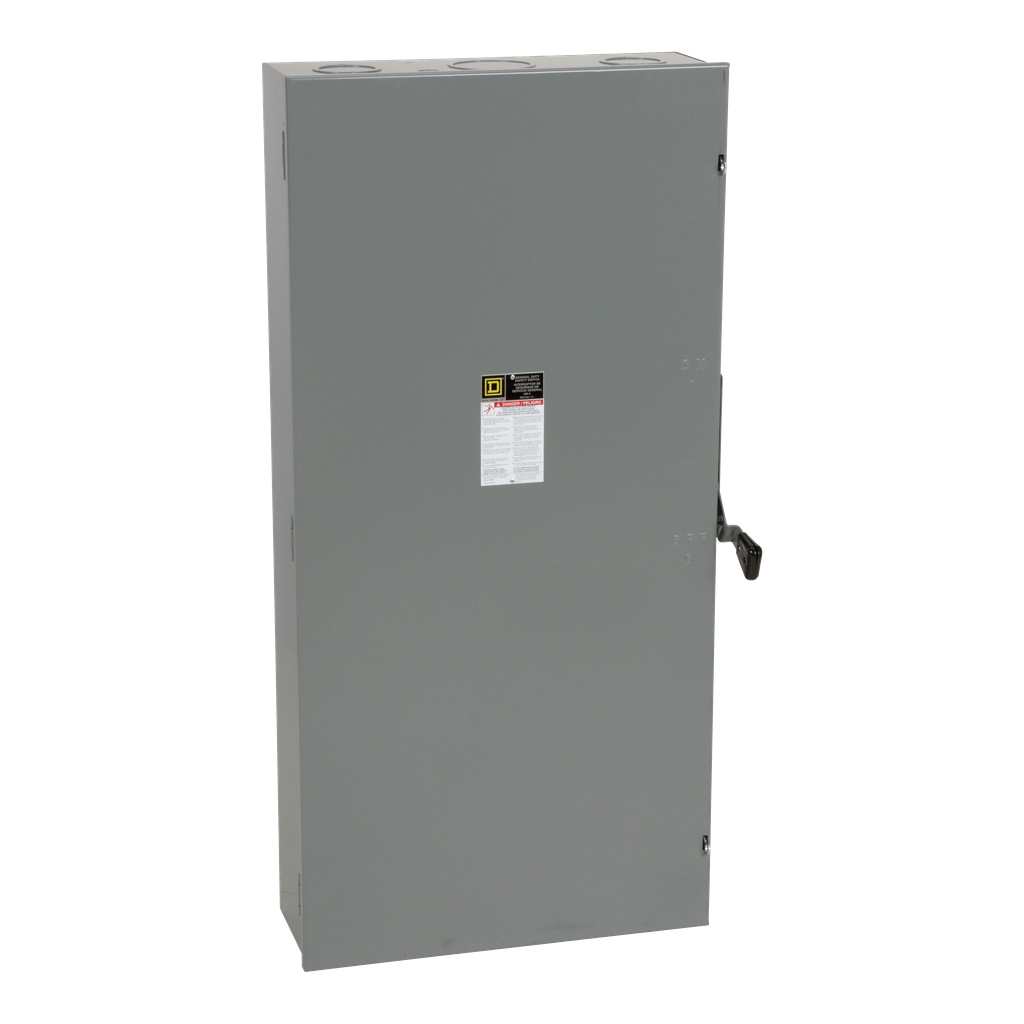

Safety switch, general duty, non fusible, 600A, 3 pole, 3 wire, 150hp, 240VAC, NEMA 1
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 600A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 1 enclosure and is surface mounted. This non-fusible disconnect switch comes with no neutral. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed. Series F Type 3R covers have side opening construction.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | non-fusible disconnect switch |
|---|---|
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | general duty |
| Nema Degree Of Protection | NEMA 1 |
| Line Rated Current | 30 A |
| Motor Power Hp | 150 hp at 240 V AC 60 Hz for 3 phase motors |
| Device Composition | none |
| Device Application | residential |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Warranty | 18 months |
| Height | 45.12 in |
| Device Mounting | surface |
| Tightening Torque | 450-450 lbf.in (AWG 4...500 kcmil) |
| Net Weight | 53.1 kg |
| Electrical Connection | lugs |
| Awg Gauge | AWG 4...500 kcmil aluminium/copper |
| Width | 24.88 in |
| Wiring Configuration | 3-wire |
| Depth | 8.88 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL listed file E2875 |
