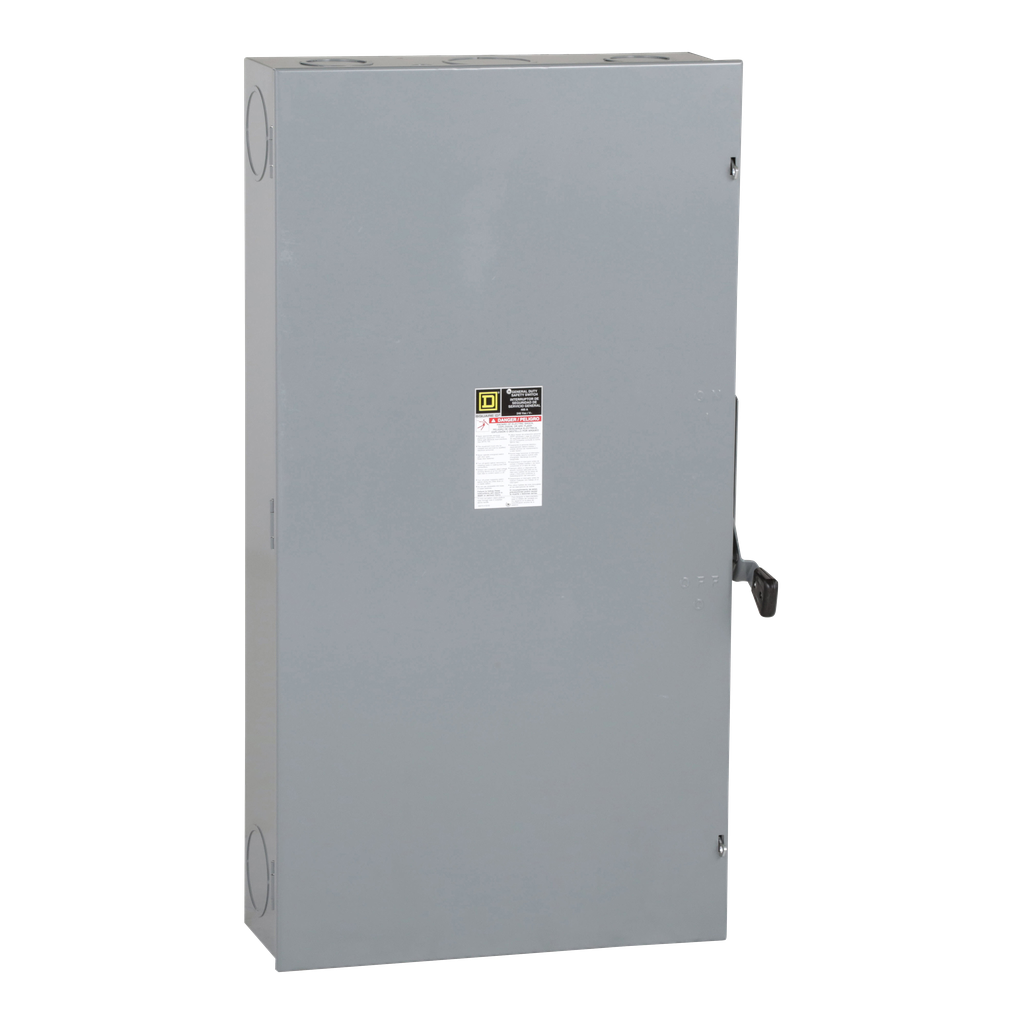

DU325 - Safety switch, general duty, non fusible, 400A, 3 pole, 3 wire, 125hp, 240VAC, NEMA 1

DU325

Safety switch, general duty, non fusible, 400A, 3 pole, 3 wire, 125hp, 240VAC, NEMA 1

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 400A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 1 enclosure and is surface mounted. This non-fusible disconnect switch comes with no neutral. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed. Series F Type 3R covers have side opening construction.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Series Name	general duty
Disconnector Device Type	non-fusible disconnect switch
Nema Degree Of Protection	NEMA 1
Line Rated Current	400 A
Product Or Component Type	Single Throw Safety Switch
Motor Power Hp	125 hp at 240 V AC 60 Hz for 3 phase motors
Device Composition	none
Phase	3 phase
Device Application	residential
Number Of Poles	3
[Ue] Rated Operational Voltage	240 V AC
Warranty	18 months
Height	45.12 in
Device Mounting	surface
Tightening Torque	340-340 lbf.in (AWG 1/0...750 kcmil) 340-340 lbf.in (2 x AWG 1/0...2 x 300 kcmil)
Electrical Connection	lugs
Awg Gauge	AWG 1/0...600 kcmil aluminium/copper 2 x AWG 1/0...2 x 300 kcmil aluminium/copper
Width	24.88 in
Wiring Configuration	3-wire
Depth	8.88 in
Net Weight	52 kg
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	UL listed file E2875
