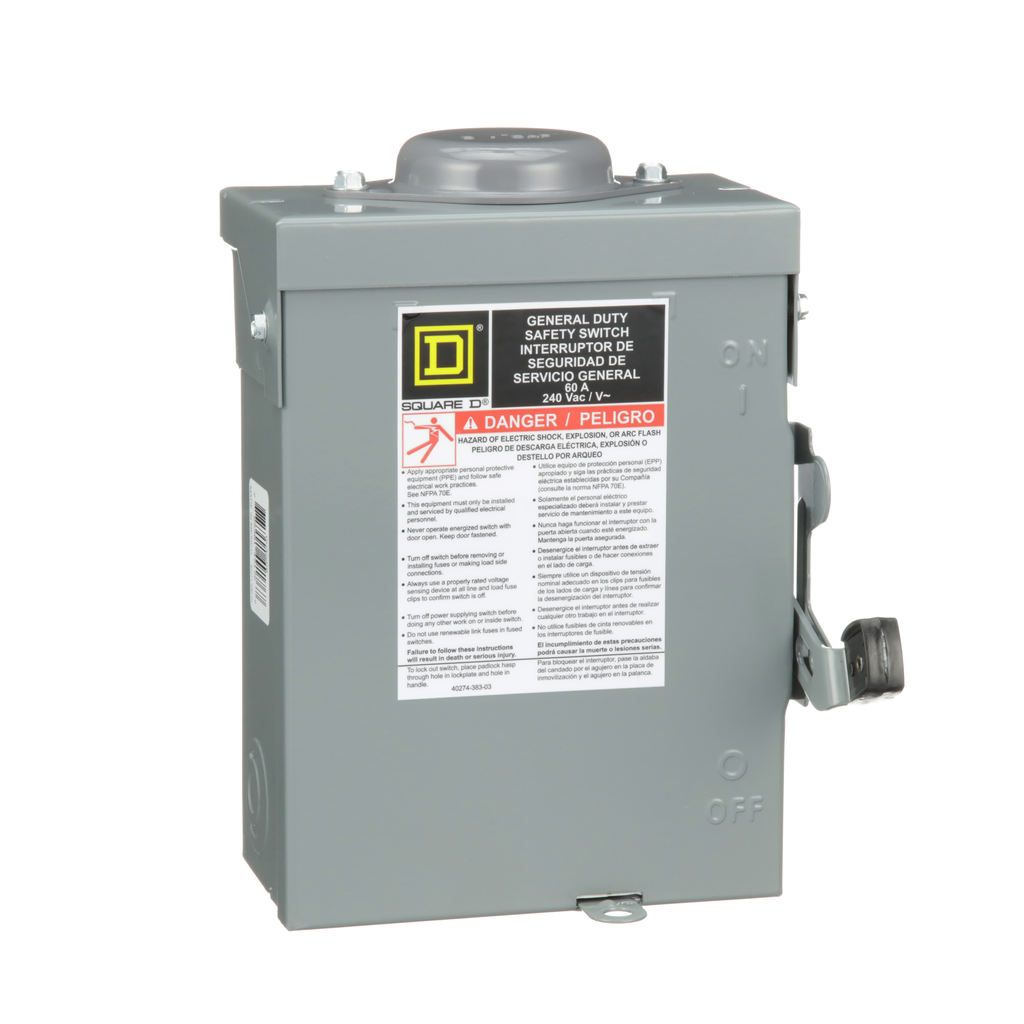

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 60A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 3R enclosure and is surface mounted. This non-fusible disconnect switch comes with no neutral. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueDisconnector Device Type | non-fusible disconnect switch |
---|---|
Product Or Component Type | Single Throw Safety Switch |
Phase | 3 phase |
Series Name | general duty |
Nema Degree Of Protection | NEMA 3R |
Line Rated Current | 60 A |
Motor Power Hp |
|
Device Composition | none |
Device Application | residential |
Number Of Poles | 3 |
[Ue] Rated Operational Voltage | 240 V AC |
Warranty | 18 months |
Height | 9.63 in |
Device Mounting | surface |
Tightening Torque |
|
Net Weight | 11.8 kg |
Electrical Connection | lugs |
Awg Gauge |
|
Width | 7.75 in |
Wiring Configuration | 3-wire |
Depth | 3.75 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1310005EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Product Certifications | UL listed file E2875 |
