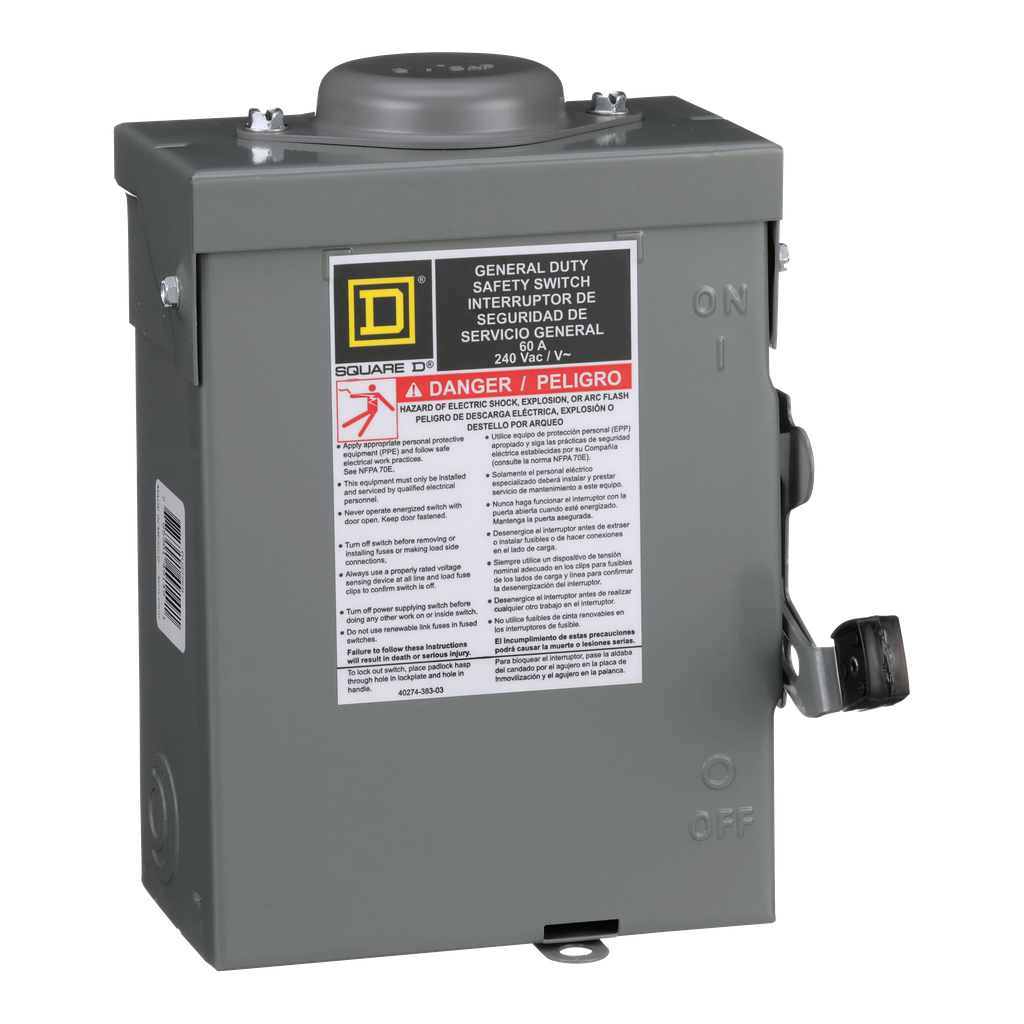

Safety switch, general duty, non fusible, 60A, 2 pole, 2 wire, 10hp, 240VAC, NEMA 3R, bolt on hub provision
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 60A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 3R enclosure and is surface mounted. This non-fusible disconnect switch comes with no neutral. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | general duty |
|---|---|
| Disconnector Device Type | non-fusible disconnect switch |
| Nema Degree Of Protection | NEMA 3R |
| Line Rated Current | 60 A |
| Product Or Component Type | Single Throw Safety Switch |
| Motor Power Hp | 10 hp at 240 V AC 60 Hz for 1 phase motors |
| Device Composition | none |
| Phase | 3 phase |
| Device Application | residential |
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Warranty | 18 months |
| Height | 9.63 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Electrical Connection | lugs |
| Awg Gauge |
|
| Wiring Configuration | 2 wires |
| Width | 7.75 in |
| Depth | 3.75 in |
| Net Weight | 1.8 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | UL listed file E2875 |
