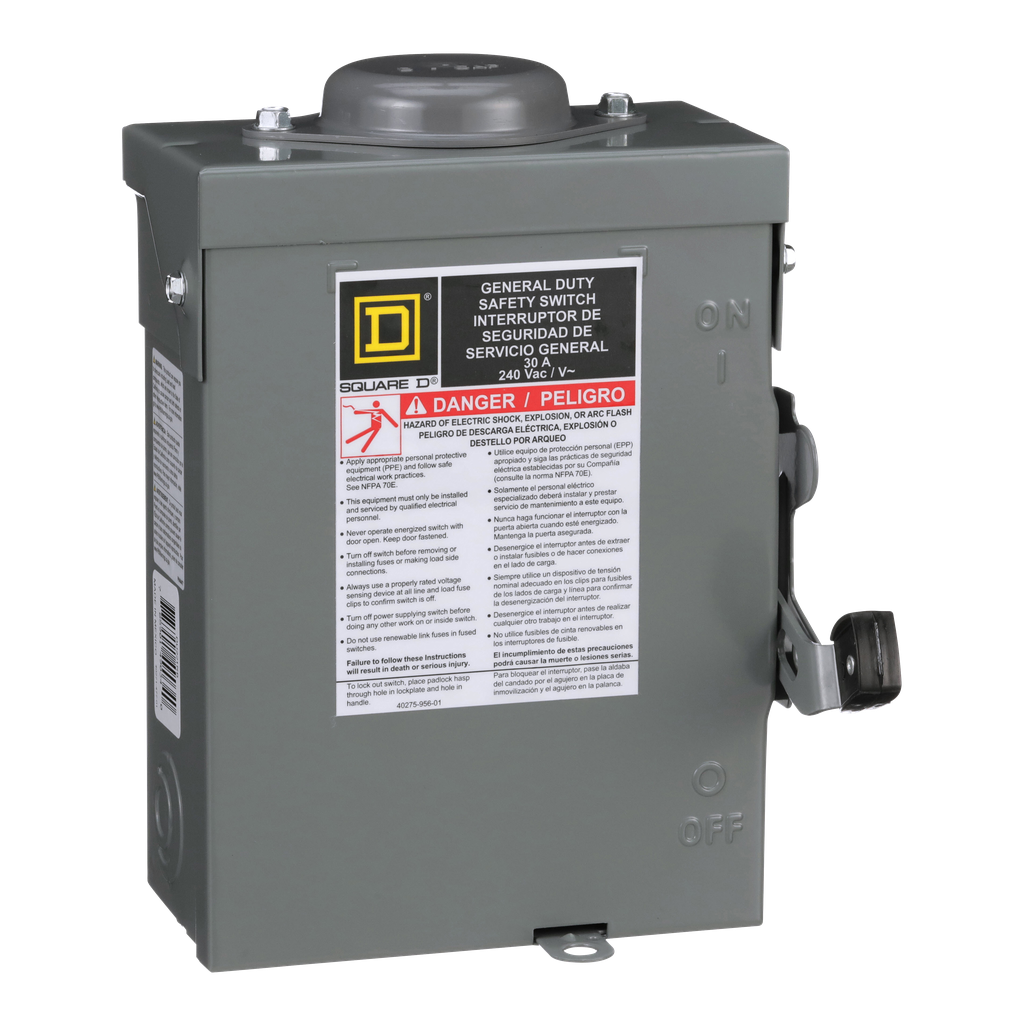

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 2-pole, 240VAC has a short curcuit rating of 10kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.
Brand: Schneider Electric
Add to Quote CatalogueSeries Name | general duty |
---|---|
Disconnector Device Type | non-fusible disconnect switch |
Nema Degree Of Protection | NEMA 3R |
Line Rated Current | 30 A |
Product Or Component Type | Single Throw Safety Switch |
Motor Power Hp | 3 hp at 240 V AC 60 Hz for 1 phase motors |
Device Composition | none |
Phase | 3 phase |
Device Application | residential |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage | 240 V AC |
Warranty | 18 months |
Height | 9.63 in |
Device Mounting | surface |
Tightening Torque | 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6) |
Electrical Connection | lugs |
Awg Gauge |
|
Wiring Configuration | 2 wires |
Width | 7.75 in |
Depth | 3.75 in |
Net Weight | 1.8 kg |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1310005EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | UL listed file E2875 |
