Series Name | general duty |
---|---|
Disconnector Device Type | non-fusible disconnect switch |
Nema Degree Of Protection | NEMA 1 |
Line Rated Current | 400 A |

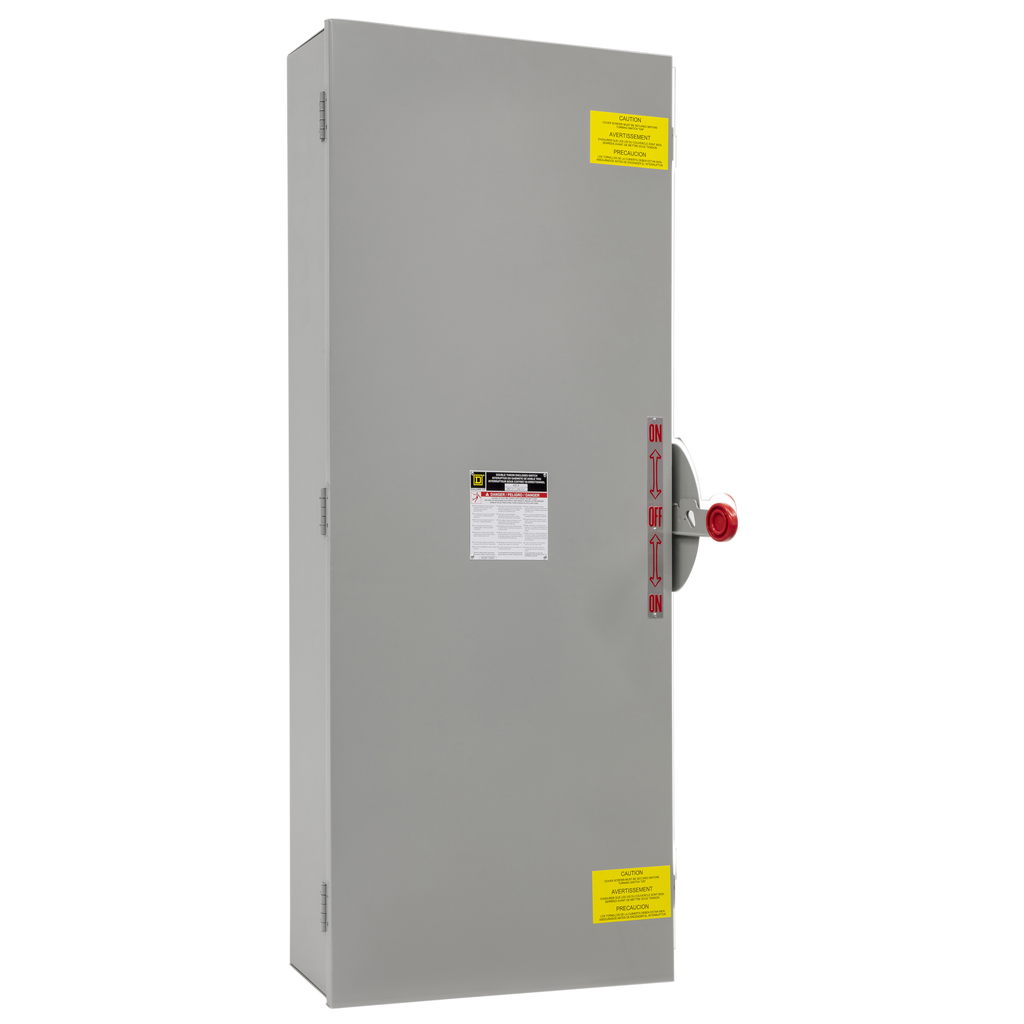

Product Or Component Type | Double Throw Safety Switch |
Device Composition | none |
Number Of Poles | 3 |
[Ue] Rated Operational Voltage |
|
Height | 54.50 in |
Device Mounting | surface |
Fuse Type | H or K |
Awg Gauge | AWG 1/0...750 kcmil aluminium/copper |
Width | 24 in |
Depth | 7.25 in |
Short-Circuit Current | 10 kA H or K |
Net Weight | 64 kg |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1307076EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | UL Listed |
