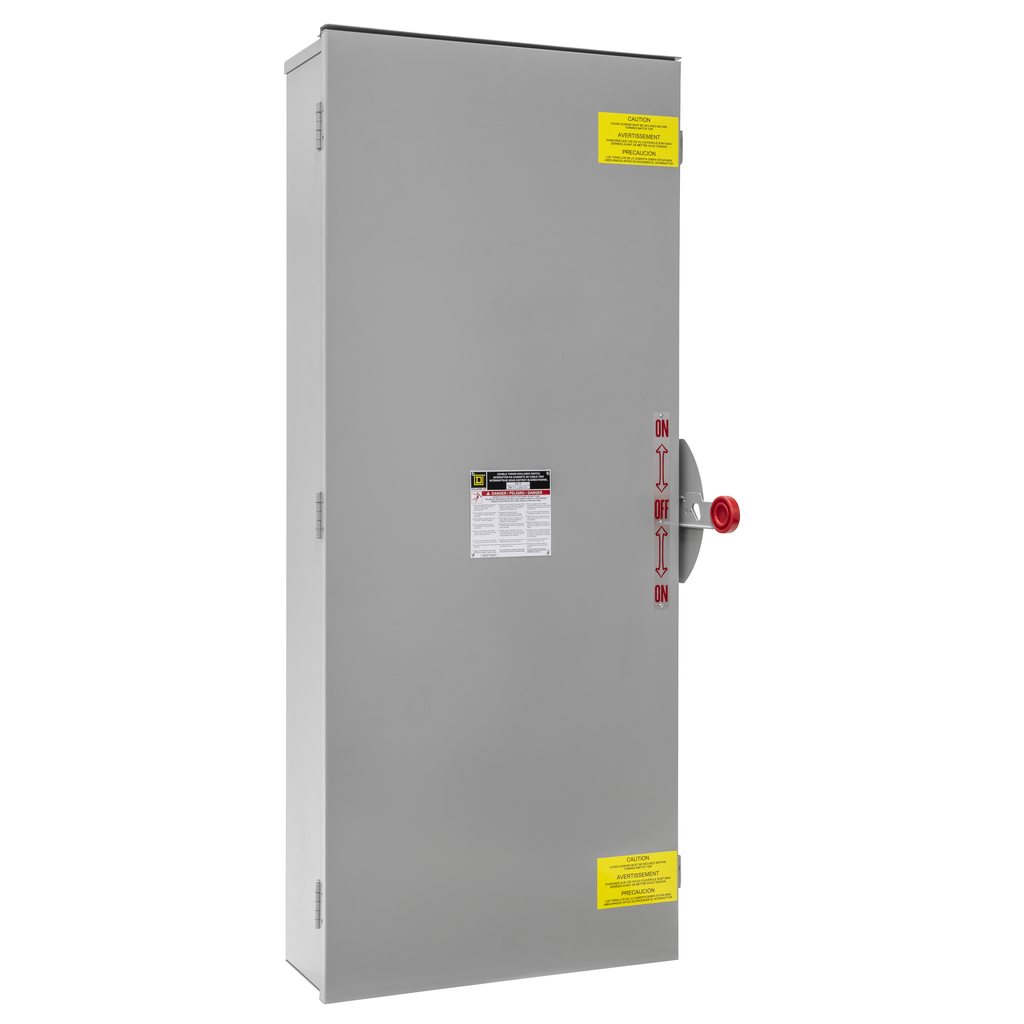

DTU225R - Safety switch, double throw, non fusible, 400A, 240VAC, 250VDC, 2 pole, 50hp, NEMA 3R

DTU225R

Add to Quote Catalogue

Series Name	general duty
Disconnector Device Type	non-fusible disconnect switch
Nema Degree Of Protection	NEMA 3R
Line Rated Current	400 A
Product Or Component Type	Double Throw Safety Switch
Device Composition	none
Number Of Poles	2
[Ue] Rated Operational Voltage	240 V AC 250 V DC
Height	54.50 in
Device Mounting	T-bar grid
Fuse Type	H or K
Awg Gauge	AWG 1/0...750 kcmil aluminium/copper
Width	24 in
Depth	7.25 in
Short-Circuit Current	10 kA H or K
Net Weight	59 kg
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1307076EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Product Certifications	UL Listed
