Thermal overload relay,Easy TeSys DPER,23…32A,class 10

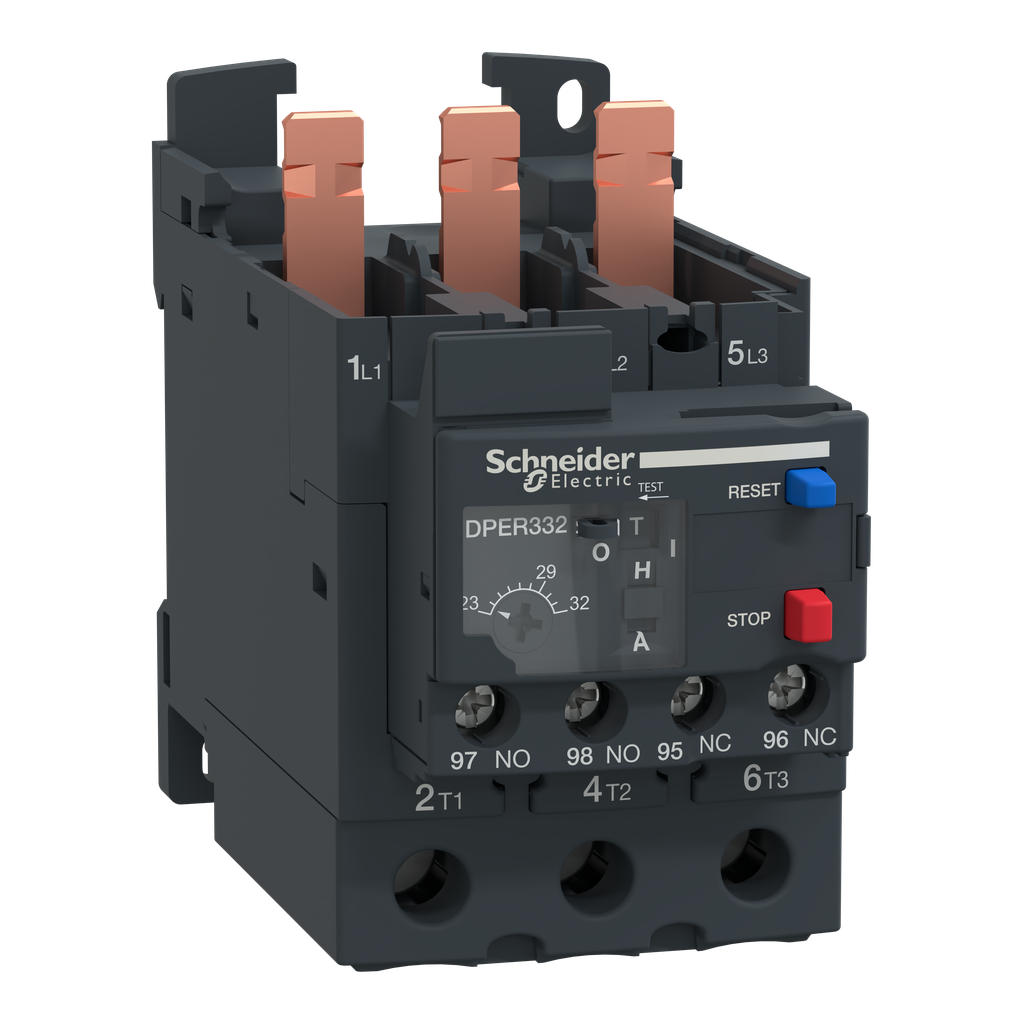

Easy TeSys DPER thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 10, for protection of 3-phase motors. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE40-65. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (IEC, cUL), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thermal Protection Adjustment Range | 23-32 A |
|---|---|
| Relay Application | motor protection |
| Product Or Component Type | differential thermal overload relay |
| Product Name | Easy TeSys DPER |
| Thermal Overload Class | class 10 IEC 60947-4-1 |
| Range | Easy TeSys |
| [Ui] Rated Insulation Voltage |
|
| Product Compatibility | contactor DPE40-65 |
| Device Short Name | DPER |
| Network Frequency | 0...400 Hz |
| Height | 70 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Connections - Terminals |
|
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| [Ue] Rated Operational Voltage | 300 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Network Type |
|
| Protection Type |
|
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Net Weight | 0.375 kg |
| Permissible Current |
|
| Surge Withstand | 6 kV IEC 60801-5 |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Tightening Torque |
|
| Control Type |
|
| Mounting Support |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Width | 55 mm |
| Depth | 123 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080405EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI0804005_V1 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Standards |
|
| Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1 |
| Climatic Withstand | IACS E10 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-7 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Vibration Resistance | 4 gn on plate IEC 60068-2-6 |
| Flame Retardance | V1 conforming to UL 94 |
| Ambient Air Temperature For Storage | -60-70 °C |
| Protective Treatment | TH IEC 60068 |
| Temperature Compensation | -20-60 °C |
