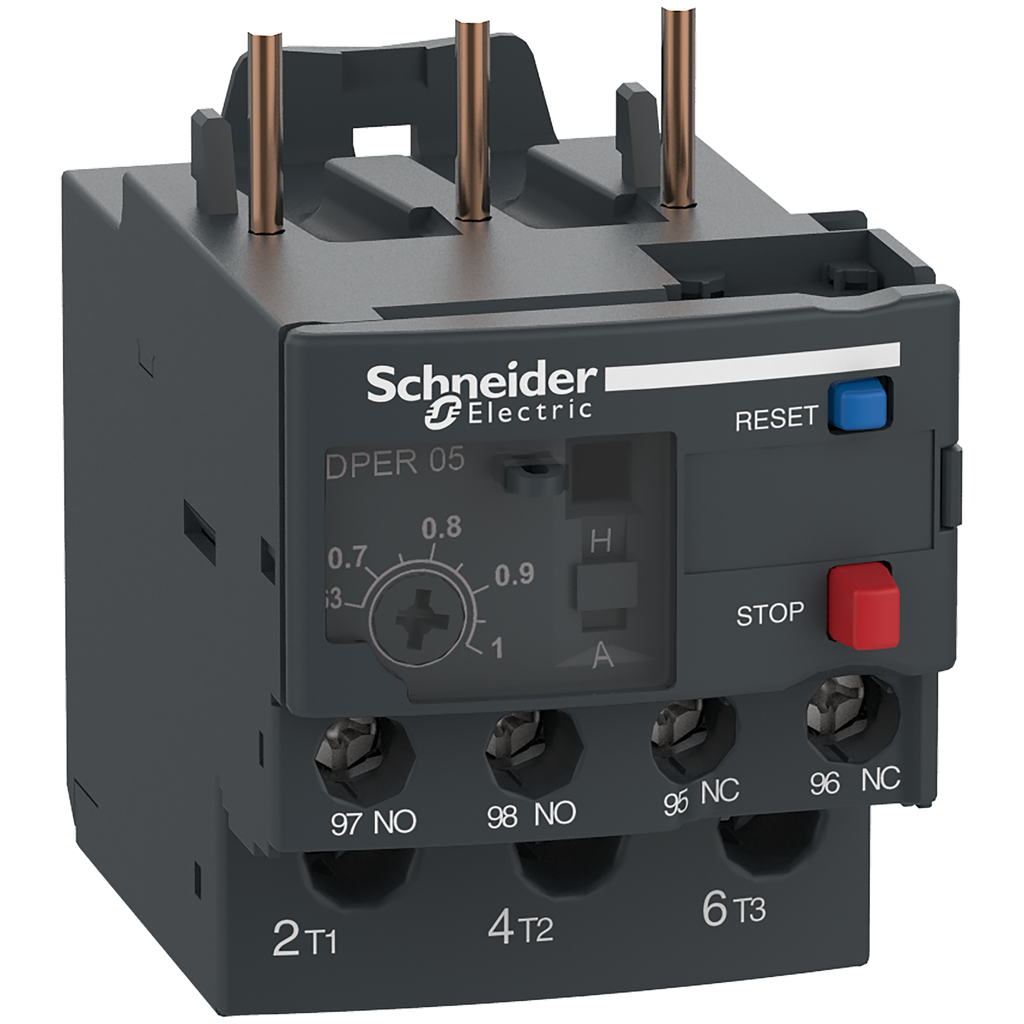

Easy TeSys DPER thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 10, for protection of 3-phase motors 0.25-0.37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (IEC, cUL), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueThermal Protection Adjustment Range | 0.63-1 A |
---|---|
Relay Application | overload protection |
Product Or Component Type | thermal overload relay |
Product Name | Easy TeSys DPER |
Thermal Overload Class | class 10 IEC 60947-4-1 |
Range | Easy TeSys |
[Ui] Rated Insulation Voltage |
|
Product Compatibility | contactor DPE09-38 |
Device Short Name | DPER |
Network Frequency | 0...400 Hz |
Height | 66 mm |
[Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
Connections - Terminals |
|
Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
[Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
Network Type |
|
Protection Type |
|
Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
Net Weight | 0.124 kg |
Permissible Current |
|
Surge Withstand | 6 kV IEC 60801-5 |
Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
Tightening Torque |
|
Control Type |
|
Mounting Support |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Width | 45 mm |
Depth | 70 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP080206EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI0802006 |
Eu Rohs Directive | Compliant |
Product Certifications | cUL |
Standards |
|
Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1 |
Shock Resistance | 15 gn 11 ms IEC 60068-2-7 |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Vibration Resistance | 6 gn on plate IEC 60068-2-6 |
Ambient Air Temperature For Storage | -60-70 °C |
Protective Treatment | TH IEC 60068 |
Temperature Compensation | -20-60 °C |
