DPEAN11 - Auxiliary contact block,Easy TeSys DPE,1NO 1NC

DPEAN11

Auxiliary contact block,Easy TeSys DPE,1NO+1NC

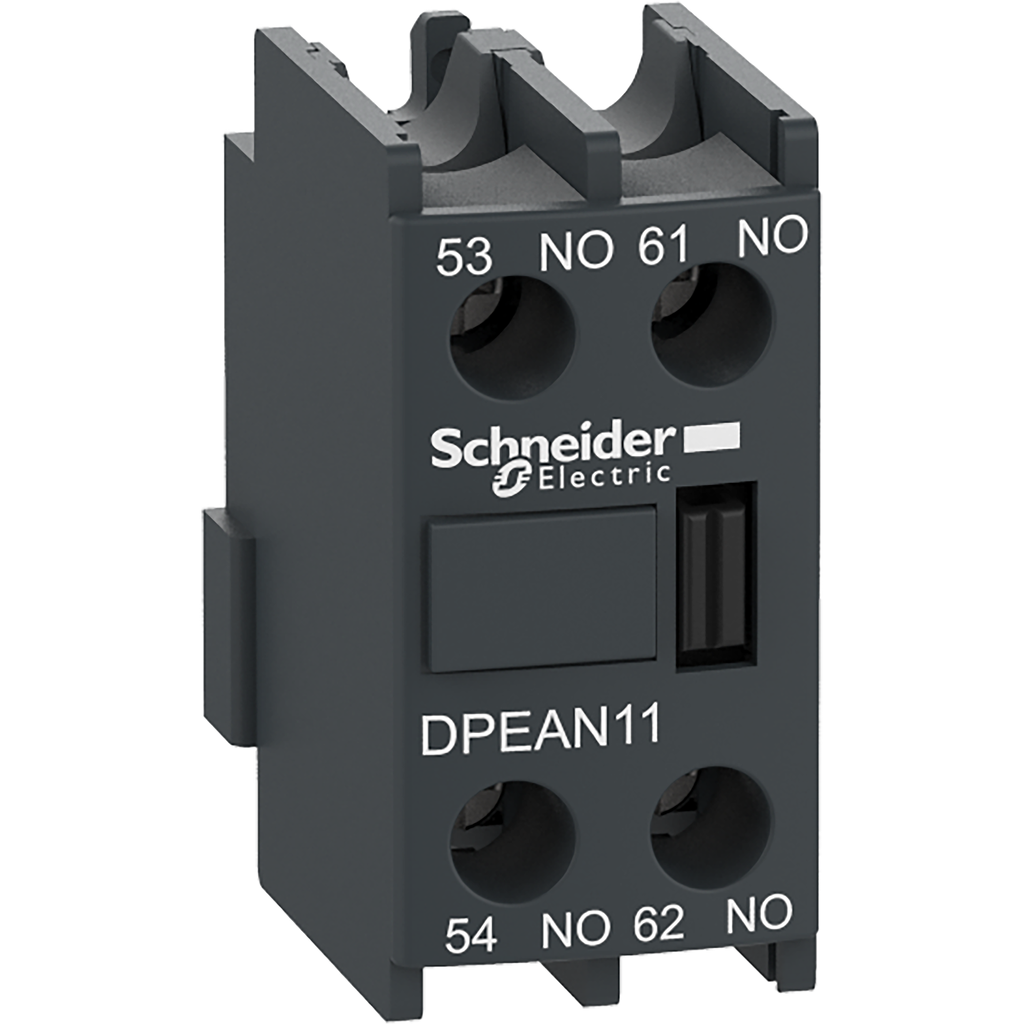

Easy TeSys DPE auxiliary contact block. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the overload relays , connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Permissible Short-Time Rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 °C
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Range Compatibility	Easy TeSys (Easy TeSys DPE) contactor
Product Or Component Type	auxiliary contact block
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
Range	Easy TeSys
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 600 V CSA
Auxiliary Contacts Operation	instantaneous
Device Short Name	DPEAN
Non-Overlap Time	1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
Minimum Switching Current	5 mA
Insulation Resistance	> 10 MOhm
Associated Fuse Rating	10 A gG
Connections - Terminals	screw clamp terminals1 1-2.5 mm² - rigid screw clamp terminals2 1-2.5 mm² - rigid screw clamp terminals1 1-2.5 mm² - flexible with or without cable end screw clamp terminals2 1-2.5 mm² - flexible with or without cable end screw clamp terminals AWG 10...AWG 18)
Mounting Location	front
Minimum Switching Voltage	17 V
Tightening Torque	1.2 N.m Philips No 2 1.2 N.m flat Ø 6 mm
Mechanical Durability	30 Mcycles
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110807EN_V2
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Product Certifications	UL CSA
Ambient Air Temperature For Operation	-5-60 °C
Standards	IEC 60947-5-1 EN 60947-5-1 UL 60947-5-1
Ip Degree Of Protection	IP20 conforming to VDE 0106
Ambient Air Temperature For Storage	-60-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TH IEC 60068
Operating Altitude	9842.52 ft (3000 m)
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc
