DF83N
Fuse carrier, TeSys DF, 3P+N, 25A, 400VAC, fuse size 8.5x31.5mm, with tubular link

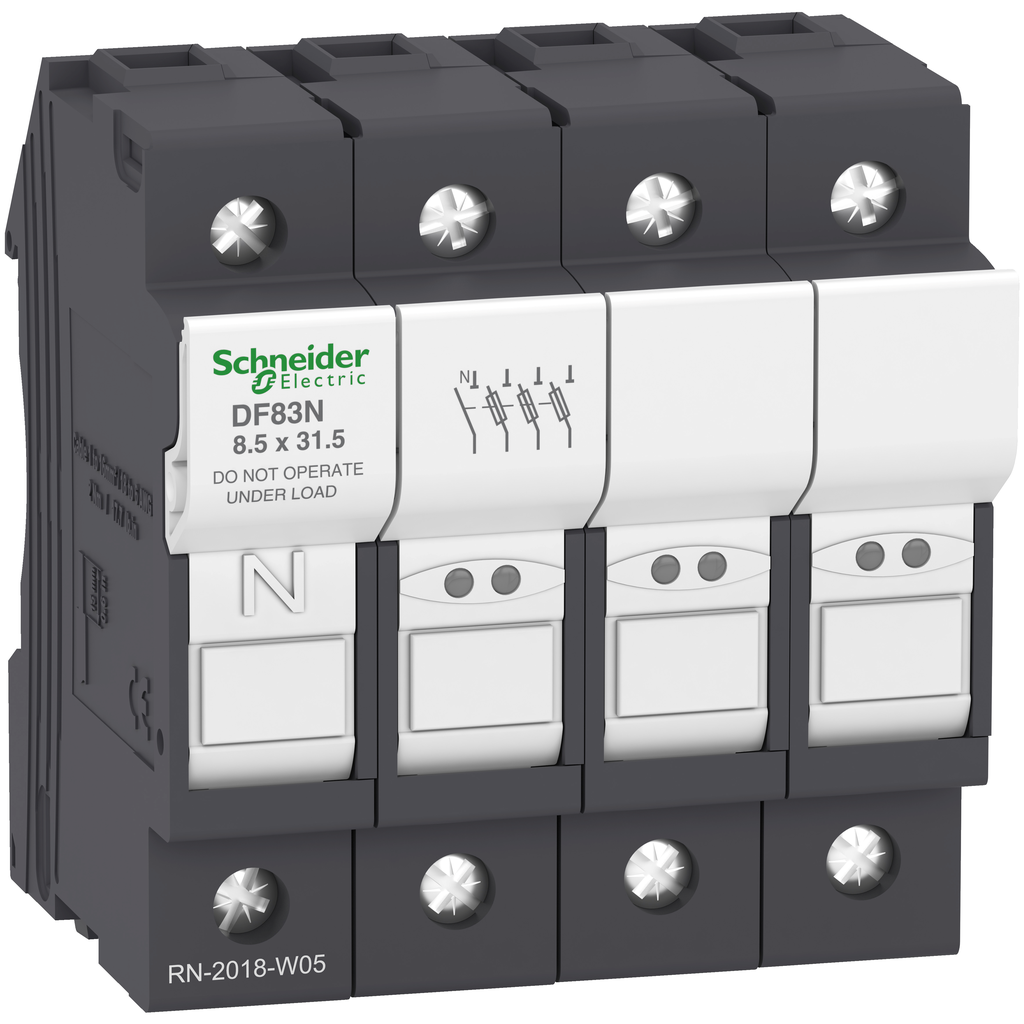

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Fuse Size | 8.3 x 31.5 mm |
|---|---|
| [Ue] Rated Operational Voltage | 400 V AC |
| [Ith] Conventional Free Air Thermal Current | 25 A 20 °C |
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| Device Composition | tubular link locked in Neutral pole |
| Power Dissipation In W | 2.5 W maximum power dissipation by fuse |
| Utilisation Category | AC-20B IEC 60947-3 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Range | TeSys |
| Overvoltage Category | III |
| Short-Circuit Withstand | 20 kA 400 V IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 500 V AC |
| Product Compatibility |
|
| [Ie] Rated Operational Current | 25 A 400 V AC |
| Control Type | toggle padlockable |
| Poles Description | 3P + N |
| Device Short Name | DF8 |
| Warranty | 18 months |
| Height | 79.5 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.171 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque |
|
| Quantity Per Set | set of 3 |
| Width | 70 mm |
| Depth | 61 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -40-70 °C with derating above 20°C |
| Ip Degree Of Protection | IP20 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Compatibility Code | DF8 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
| Fire Resistance | 960 °C IEC 60695-2-1 |
