Fuse carrier, TeSys DF, 3P+N, 125A, 690VAC, fuse size 22x58mm, blown fuse indicator

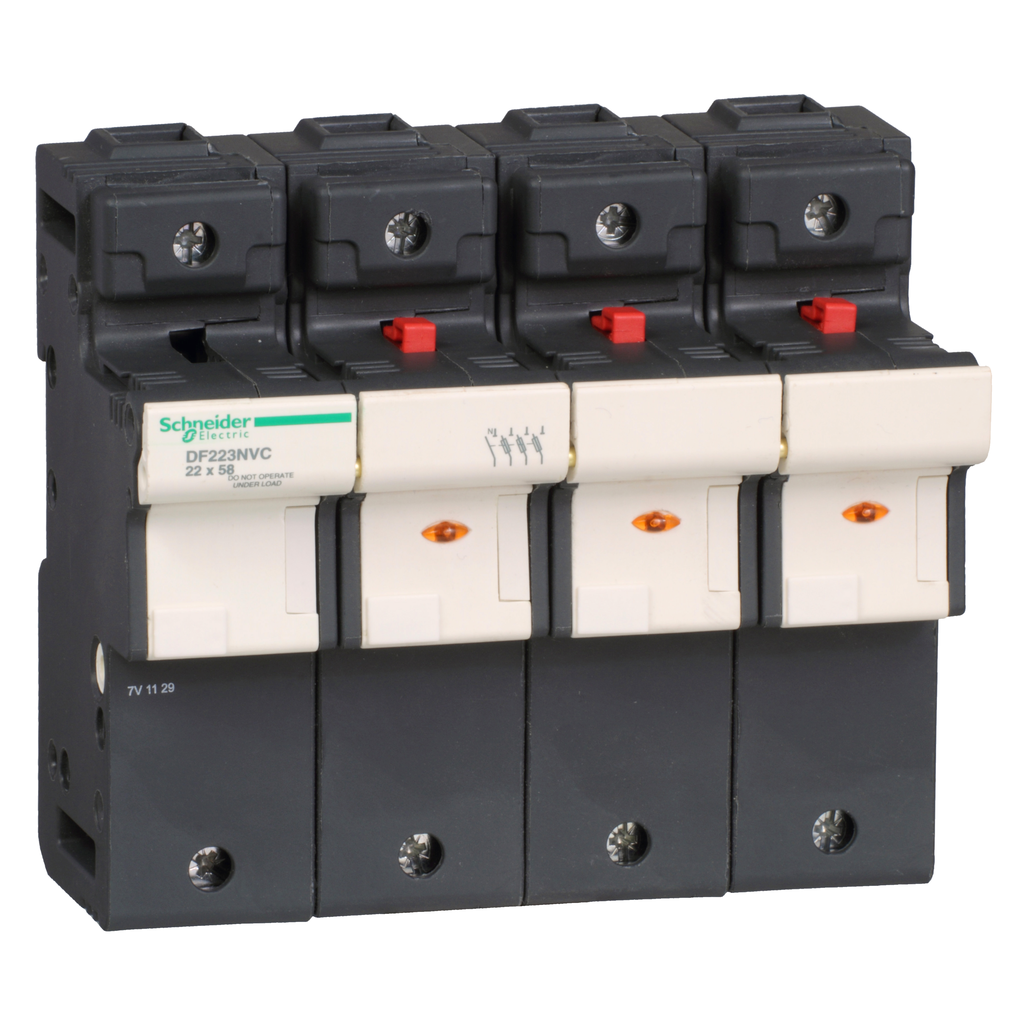

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link, blown fuse indication by LED. Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 1 unit. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Fuse Size | 22 x 58 mm |
|---|---|
| [Ue] Rated Operational Voltage |
|
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| Device Composition | tubular link locked in Neutral pole |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Range | TeSys |
| Short-Circuit Withstand |
|
| [Ui] Rated Insulation Voltage | 690 V AC |
| Product Compatibility |
|
| [Ie] Rated Operational Current | 125 A |
| Control Type | toggle |
| Poles Description | 3P + N |
| [Ipk] Rated Peak Withstand Current | 19 kA with tubular links IEC 60269-1 |
| Local Signalling | blown fuse indication |
| Device Short Name | DF22 |
| Warranty | 18 months |
| Height | 127.5 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.895 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque | 4 N.m |
| Quantity Per Set | set of 1 |
| Width | 140 mm |
| Depth | 76.5 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -20-60 °C with derating above 20°C |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | TH |
| Compatibility Code | DF22 |
| Fire Resistance | 960 °C IEC 60695-2-1 |
