DF141V
Fuse carrier, TeSys DF, 1P, 50A, 690VAC, fuse size 14x51mm, blown fuse indicator

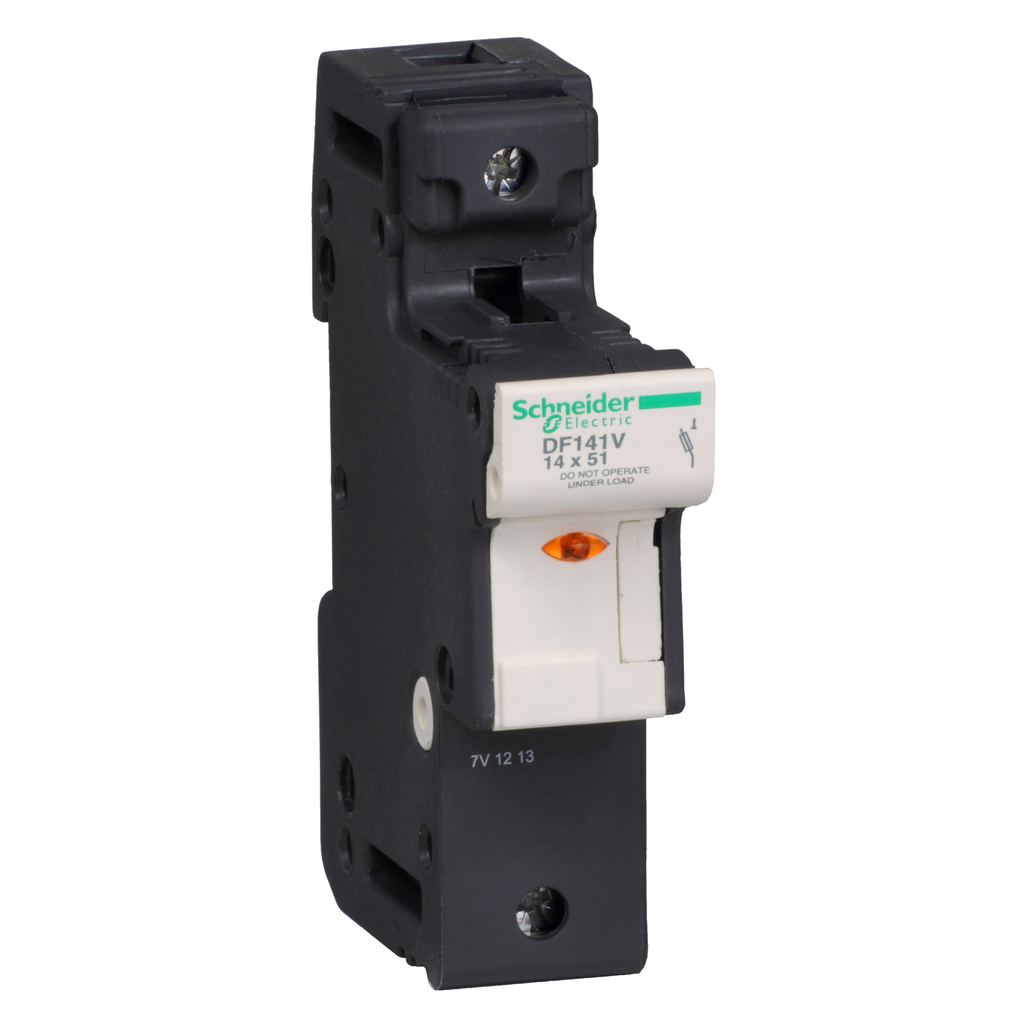

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. It provides blown fuse indication by LED. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Fuse Size | 14 x 51 mm |
|---|---|
| [Ue] Rated Operational Voltage |
|
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Range | TeSys |
| Short-Circuit Withstand |
|
| [Ui] Rated Insulation Voltage | 690 V AC |
| Product Compatibility |
|
| [Ie] Rated Operational Current | 50 A |
| Control Type | toggle |
| Poles Description | 1P |
| [Ipk] Rated Peak Withstand Current | 15 kA with tubular links IEC 60269-1 |
| Local Signalling | blown fuse indication |
| Device Short Name | DF14 |
| Warranty | 18 months |
| Height | 110.8 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.143 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque | 3.5 N.m |
| Quantity Per Set | set of 6 |
| Width | 26.5 mm |
| Depth | 76.5 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -20-60 °C with derating above 20°C |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | TH |
| Compatibility Code | DF14 |
| Fire Resistance | 960 °C IEC 60695-2-1 |
