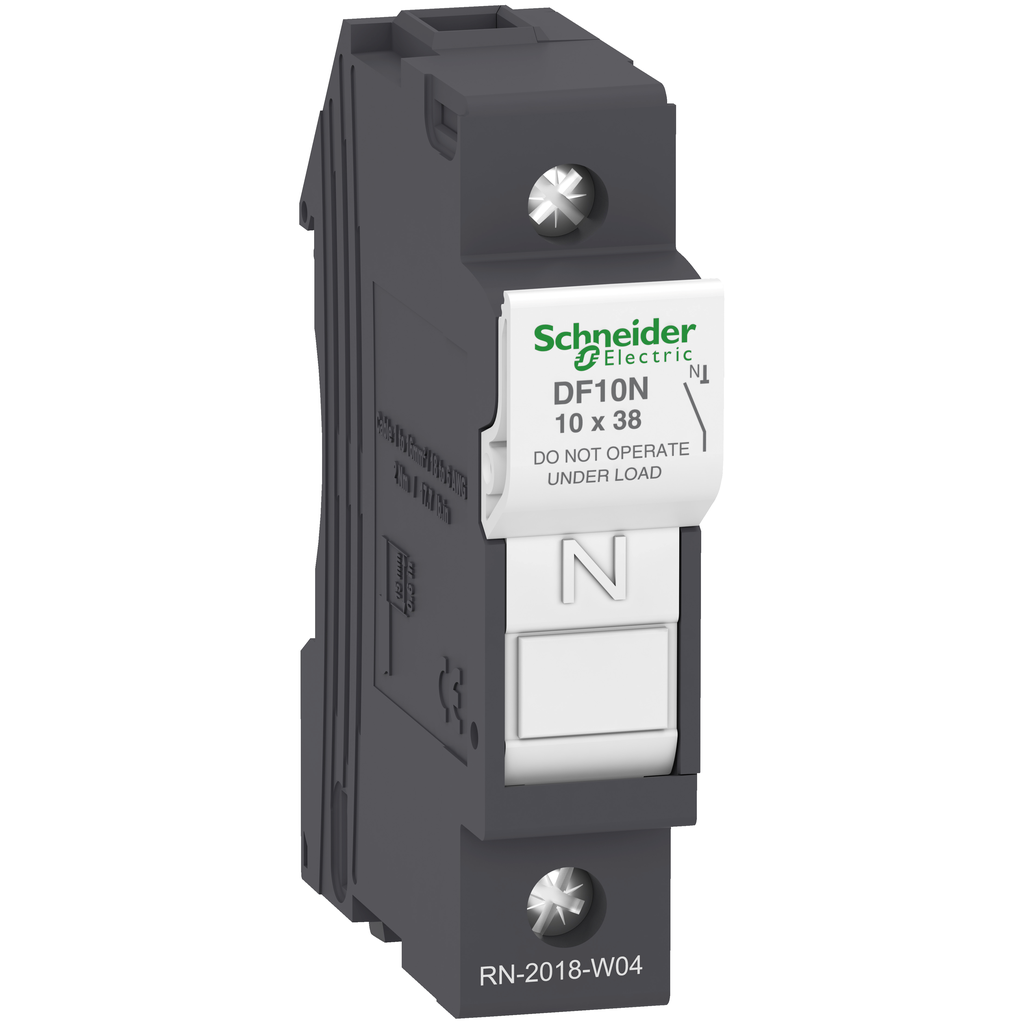

DF10N
Fuse carrier, TeSys DF, 1P Neutral, 32A, 690VAC, fuse size 10x38mm, with tubular link
TeSys DF modular fuse carrier, 1 pole (Neutral pole), for protection of control circuits up to 32A/690V. Neutral pole for 10x38mm and 8.5x31.5mm fuse carriers association. It provides a locked tubular link. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Fuse Size | 10 x 38 mm |
|---|---|
| [Ue] Rated Operational Voltage |
|
| [Ith] Conventional Free Air Thermal Current | 32 A 20 °C |
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| Device Composition | tubular link locked in Neutral pole |
| Utilisation Category |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Range | TeSys |
| Overvoltage Category | III |
| Short-Circuit Withstand |
|
| [Ui] Rated Insulation Voltage | 690 V AC |
| [Ie] Rated Operational Current | 32 A 400 V AC |
| Control Type | toggle padlockable |
| Poles Description | 1N |
| Device Short Name | DF10 |
| Warranty | 18 months |
| Height | 79.5 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.045 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque |
|
| Quantity Per Set | set of 12 |
| Width | 17.5 mm |
| Depth | 61 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -40-70 °C with derating above 20°C |
| Ip Degree Of Protection | IP20 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Compatibility Code | DF10 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Fire Resistance | 960 °C IEC 60695-2-1 |
