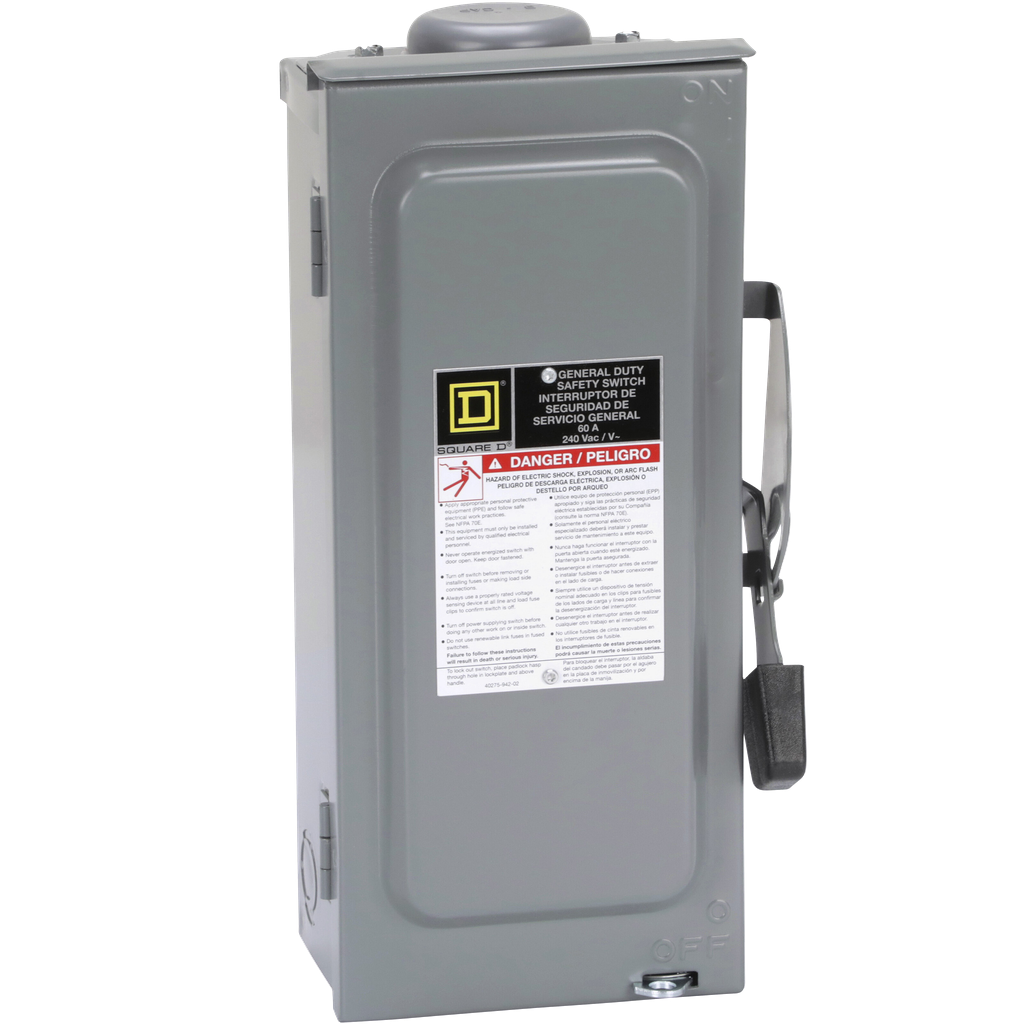

D322NRB - Safety switch, general duty, fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed

D322NRB

Safety switch, general duty, fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switches come with an 18 months warranty.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Disconnector Device Type	fusible disconnect switch
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	general duty
Nema Degree Of Protection	NEMA 3R
Line Rated Current	60 A
Motor Power Hp	1.5 hp at 120 V AC 60 Hz for 1 phase motors 3 hp at 120 V AC 60 Hz for 3 phase motors 3 hp at 240 V AC 60 Hz for 1 phase motors 7.5 hp at 240 V AC 60 Hz for 3 phase motors 10 hp at 240 V AC 60 Hz for 1 phase motors 15 hp at 240 V AC 60 Hz for 3 phase motors
Device Composition	neutral (factory installed)
Device Application	residential
Number Of Poles	3
[Ue] Rated Operational Voltage	240 V AC
Warranty	18 months
Height	14.88 in
Device Mounting	surface
Tightening Torque	35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) 35-35 lbf.in (AWG 14...AWG 10) 45-45 lbf.in 8.37-8.37 mm² (AWG 8) 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
Short-Circuit Current	100 kA maximum depending on fuse H, K or R
Net Weight	4.5 kg
Fuse Type	H, K or R
Electrical Connection	lugs
Awg Gauge	AWG 12...AWG 3 aluminium AWG 14...AWG 3 copper
Width	7.45 in
Wiring Configuration	4-wire (3PH + G)
Depth	4.87 in
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1304031
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Product Certifications	UL listed file E2875
