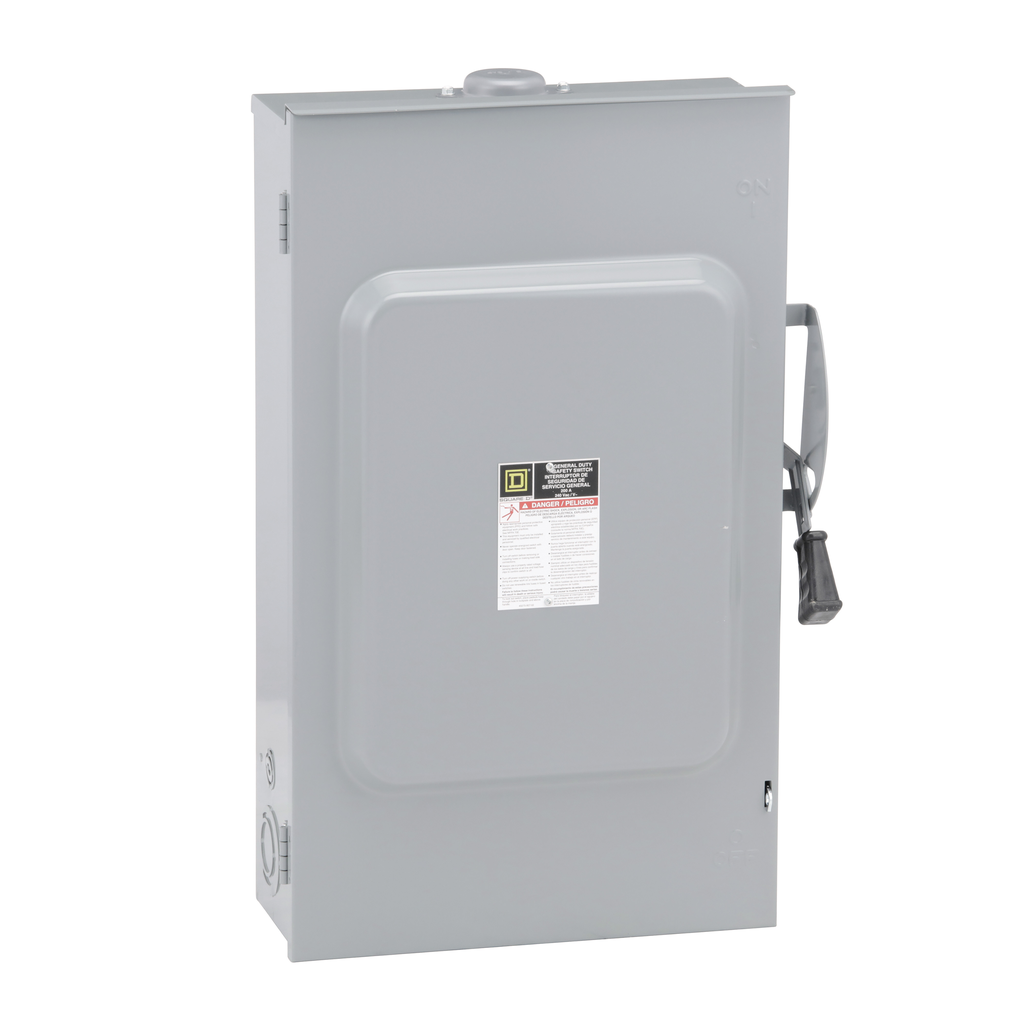

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 200A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueDisconnector Device Type | fusible disconnect switch |
---|---|
Product Or Component Type | Single Throw Safety Switch |
Phase | 3 phase |
Series Name | general duty |
Nema Degree Of Protection | NEMA 3R |
Line Rated Current | 200 A |
Motor Power Hp |
|
Device Composition | neutral (factory installed) |
Device Application | residential |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage | 240 V AC |
Warranty | 18 months |
Height | 29.25 in |
Device Mounting | surface |
Tightening Torque | 275-275 lbf.in (AWG 6...250 kcmil) |
Short-Circuit Current | 100 kA maximum depending on fuse H, K or R |
Net Weight | 24.27 kg |
Fuse Type | H, K or R |
Electrical Connection | lugs |
Awg Gauge | AWG 6...250 kcmil aluminium/copper |
Width | 19 in |
Wiring Configuration | 3-wire |
Depth | 8.5 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1305032 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Product Certifications | UL listed file E2875 |
