CYA800P7

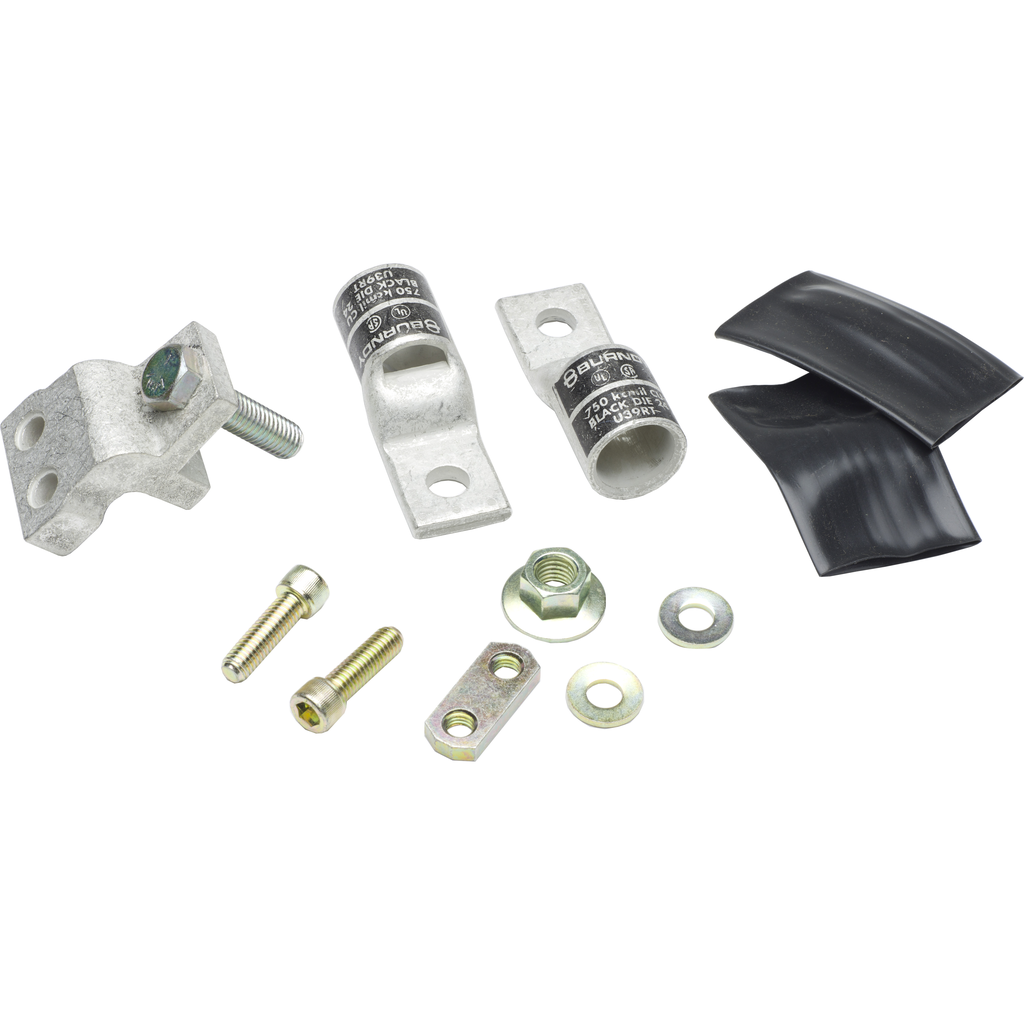

Circuit breaker accessory, PowerPacT M/P, lug kit, compression, 800A, copper, set of 2
Specifications
| Range Of Product | PowerPact M |
|---|---|
| Circuit Breaker Type | M-frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 2 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 800-800 A |
| Tightening Torque | 28-28 N.m 240-400 mm² (500...750 kcmil) |
| Awg Gauge | 500...750 kcmil aluminium/copper |
| Product Compatibility | PowerPact PowerPact |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1312003EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312003EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Compression Lug Kits for M-, P-, and R-Frame Circuit Breakers Installation Instructions - 48049-147-02 (pdf)
