CYA600L52K3

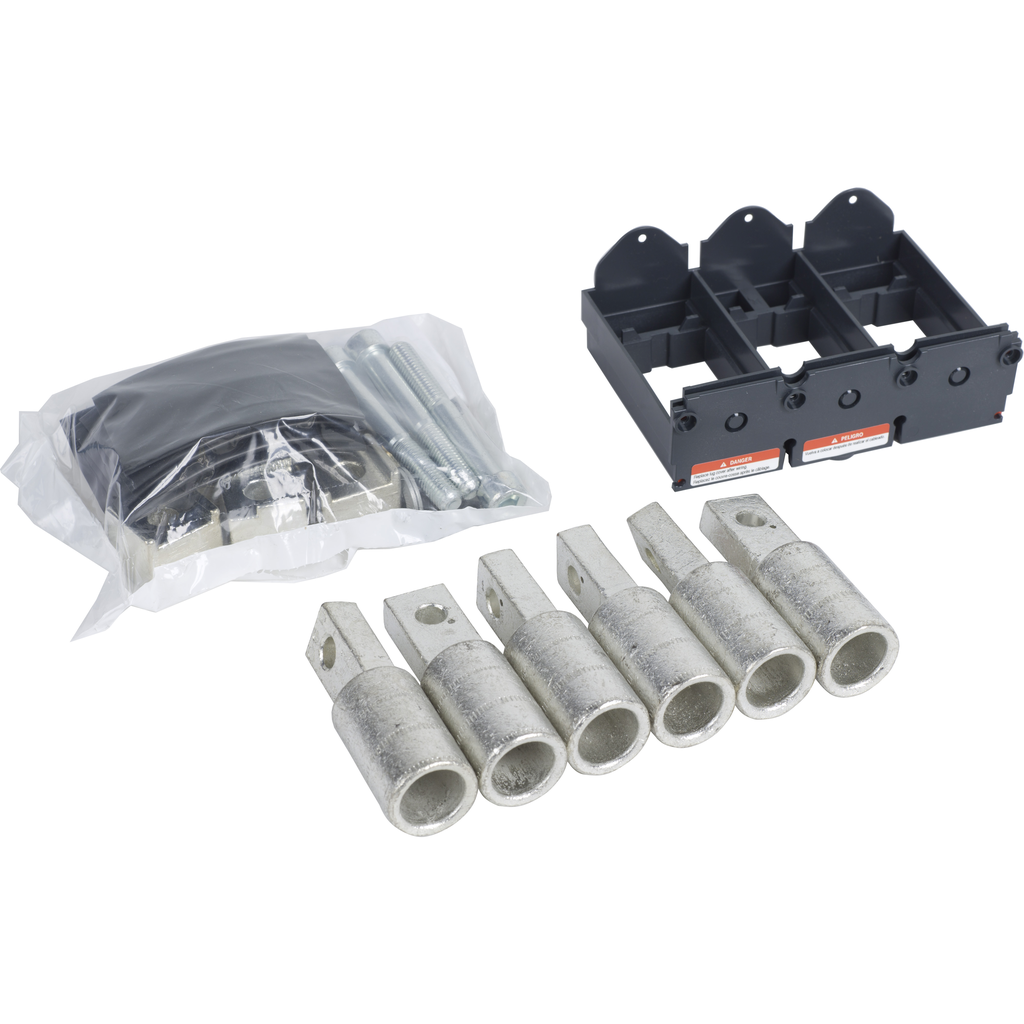

Circuit breaker accessory, PowerPacT L, lug kit, compression, 600A, copper, 250 to 500kcmil, copper, qty 6
This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, compression lug is a connection accessory with a rated current of 600A and is made of copper. The lugs accept 250kcmil to 500kcmil copper conductors. The lugs comply with UL and CSA standards. This PowerPact L, mechanical lug is a connection accessory with a rated current of 600A and is made of copper.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact L |
|---|---|
| Circuit Breaker Type | L-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 6 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 600-600 A |
| Mounting Mode | unit mount |
| Tightening Torque | 50-50 N.m 150-240 mm² (250...500 kcmil) |
| Awg Gauge | 250...500 kcmil copper |
| Product Compatibility | PowerPact L PowerPact L-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
Documents
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Compression Lug Kits for PowerPacT L-Frame Circuit Breakers Installation Instructions - S1A14749 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
