CYA400L31K3

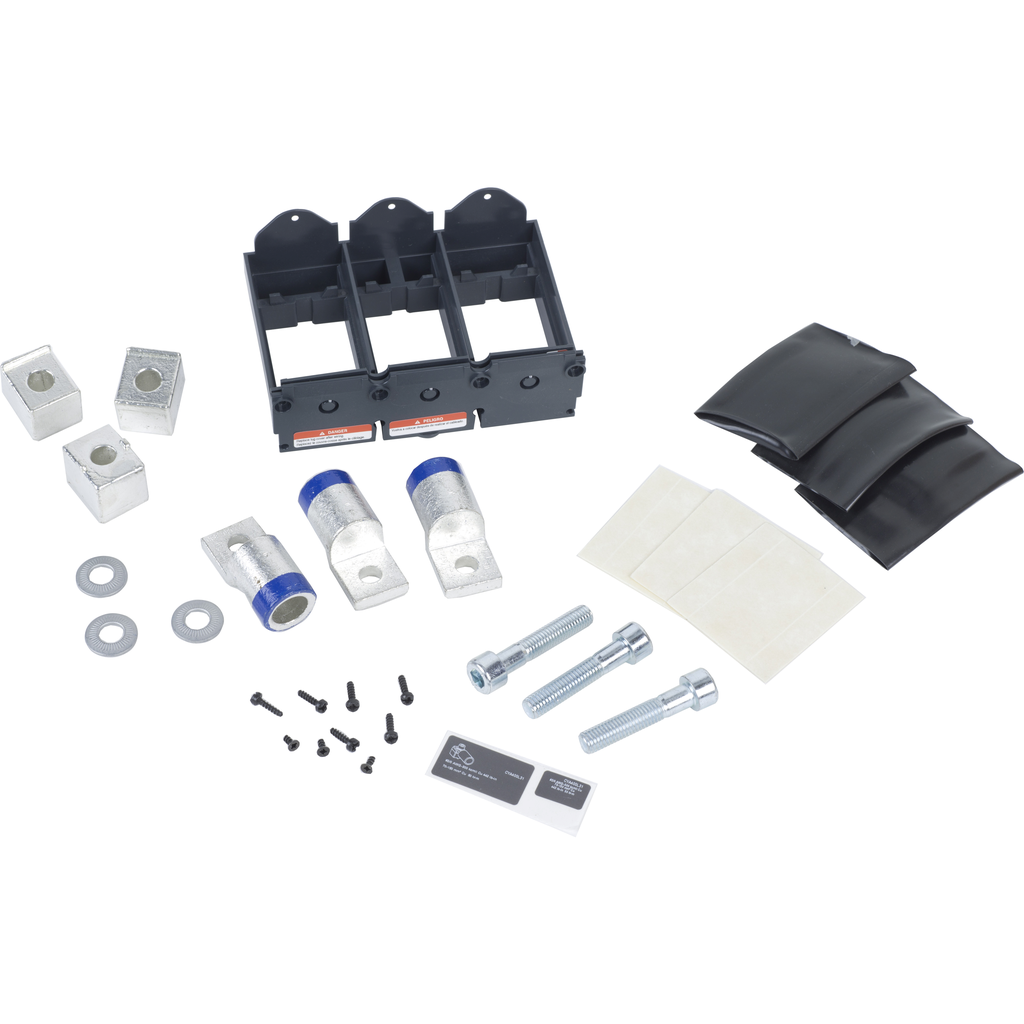

Compression lug kit, PowerPacT L, 400A, 3P, copper at 285A
Specifications
| Range Of Product | PowerPact L |
|---|---|
| Circuit Breaker Type | L-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 400-400 A |
| Tightening Torque | 50-50 N.m 70-150 mm² (AWG 2/0...300 kcmil) |
| Awg Gauge | AWG 2/0...300 kcmil copper |
| Product Compatibility | PowerPact L PowerPact L-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
