CYA250J3

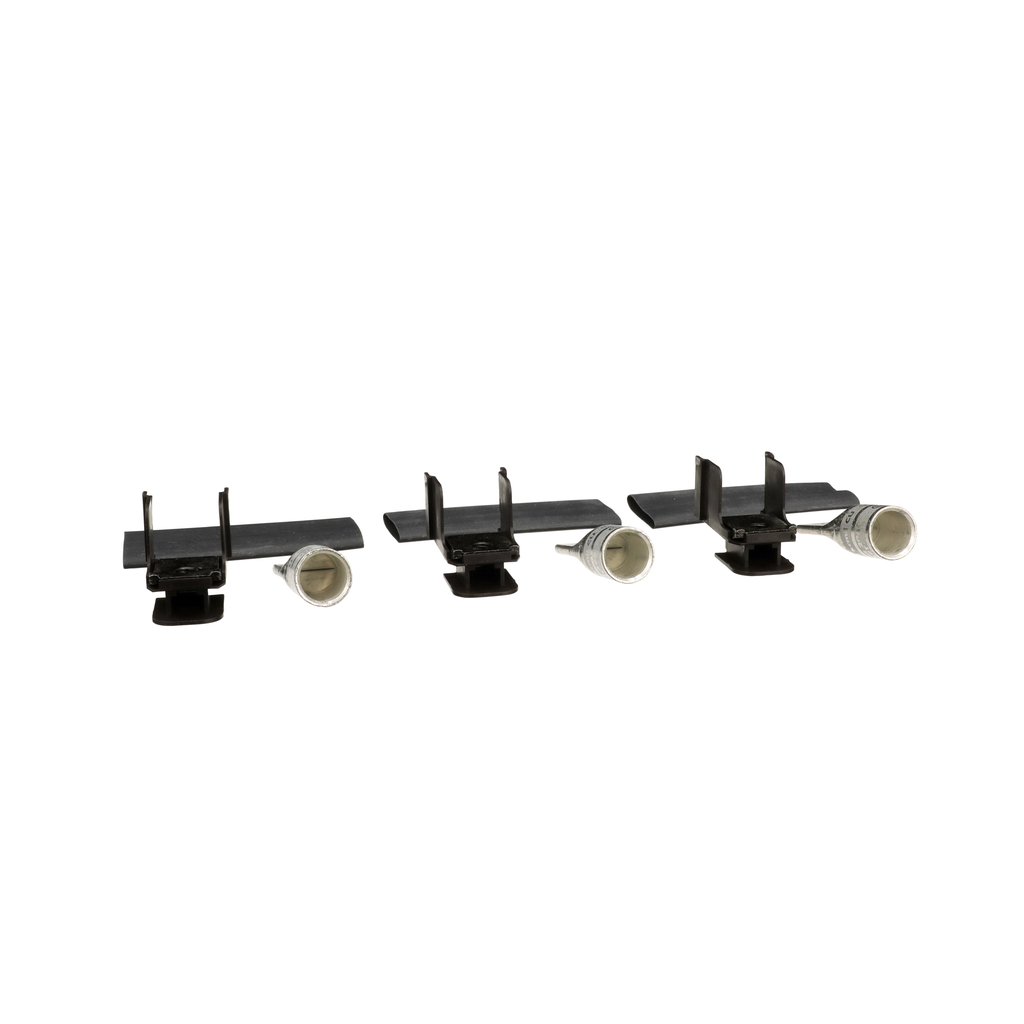

Circuit breaker accessory, PowerPacT J, lug kit, compression, 250A, copper, 2/0AWG to 300kcmil, copper, qty 3
This lug kit is for PowerPacT J circuit breakers. This PowerPacT J, compression lug is a connection accessory with a rated current of 250A and is made of copper. The lugs accept 2/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards. This lug can be used only on standard circuit breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact J |
|---|---|
| Circuit Breaker Type | J-frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 250-250 A |
| Tightening Torque | 14.7-15.8 N.m (AWG 2/0...300 kcmil) |
| Awg Gauge | AWG 2/0...300 kcmil copper |
| Product Compatibility | PowerPact J PowerPact J-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311008 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Compression Lug Kits for H- and J-frame Circuit Breakers - Installation Instructions - 48940-225-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
