CYA150JD

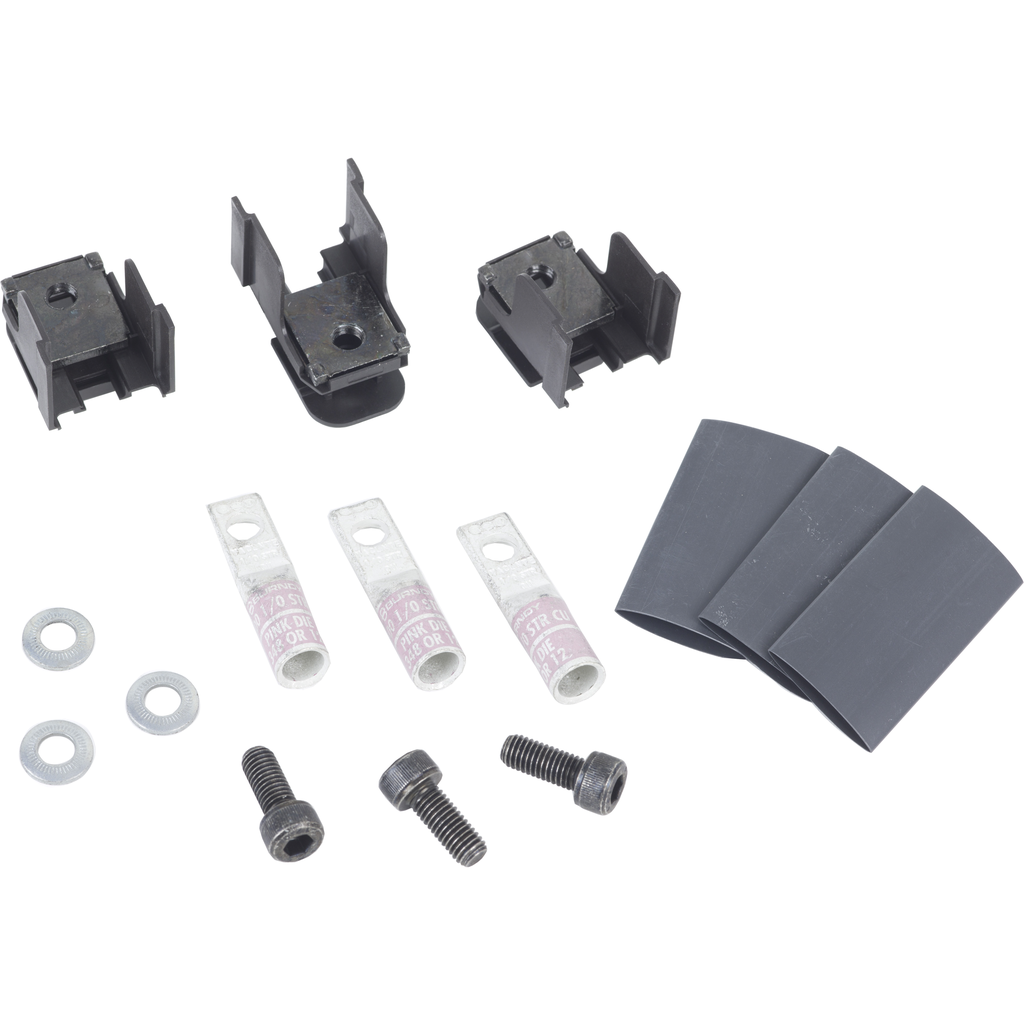

Connection accessory, PowerPacT J, unit mount, mechanical lug kit, 150A, 3 pole, copper
Specifications
| Range Of Product | PowerPact J |
|---|---|
| Circuit Breaker Type | J-frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 150-150 A |
| Tightening Torque | 14.7-15.8 N.m (AWG 10...AWG 6) |
| Awg Gauge | AWG 6...AWG 1/0 copper |
| Product Compatibility | PowerPact J PowerPact J-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311008 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
