CYA150HD

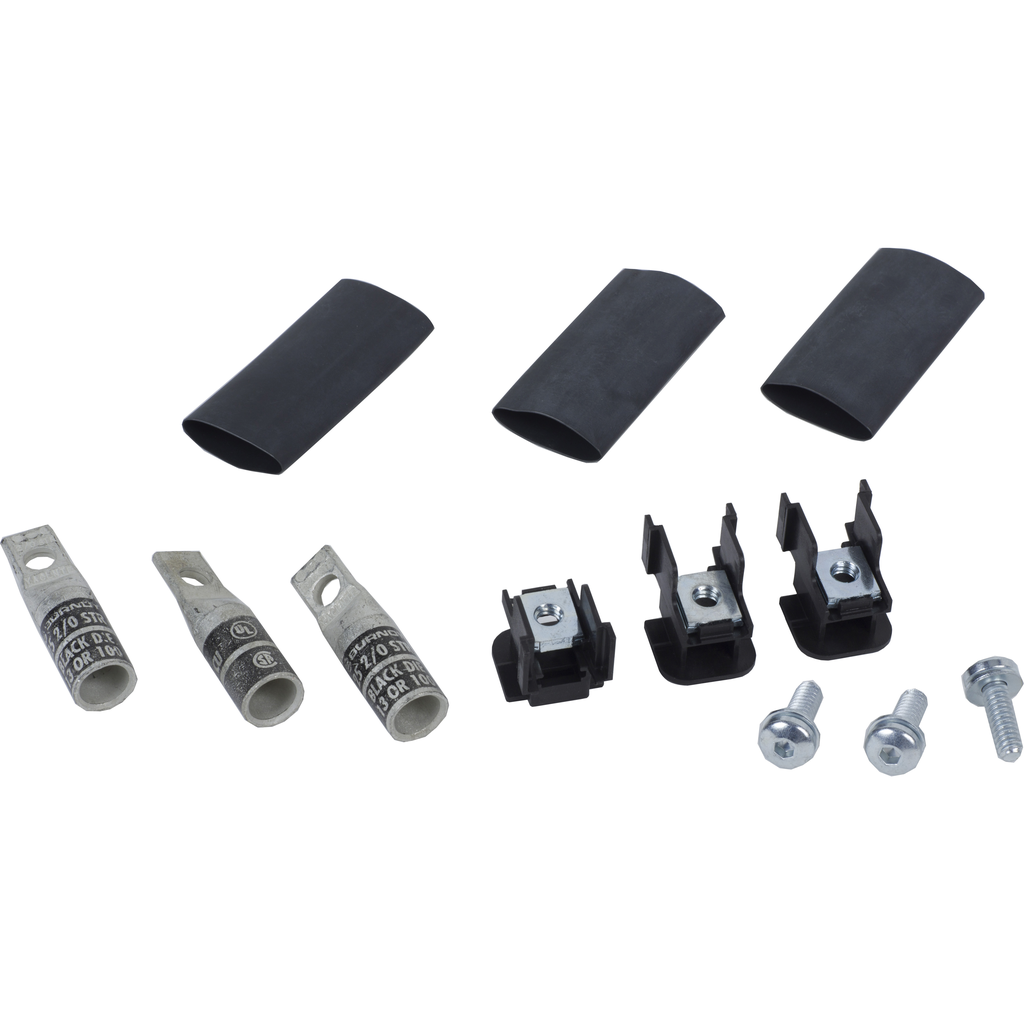

Circuit breaker accessory, PowerPacT H, lug kit, compression, 150A, 4 to 2/0AWG, copper, qty 3
This lug kit is for PowerPacT Hcircuit breakers. This PowerPacT H, compression lug is a connection accessory with a rated current of 150A and is made of copper. The lugs accept 4 AWG to 2/0 AWG copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards. This lug can be used only on standard circuit breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact H |
|---|---|
| Circuit Breaker Type | H-frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 150-150 A |
| Mounting Mode | unit mount |
| Tightening Torque | 9.0-10.2 N.m (AWG 4...AWG 2/0) |
| Awg Gauge | AWG 4...AWG 2/0 copper |
| Product Compatibility | PowerPact H PowerPact H-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2206027EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2206027EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
