CYA1200R7

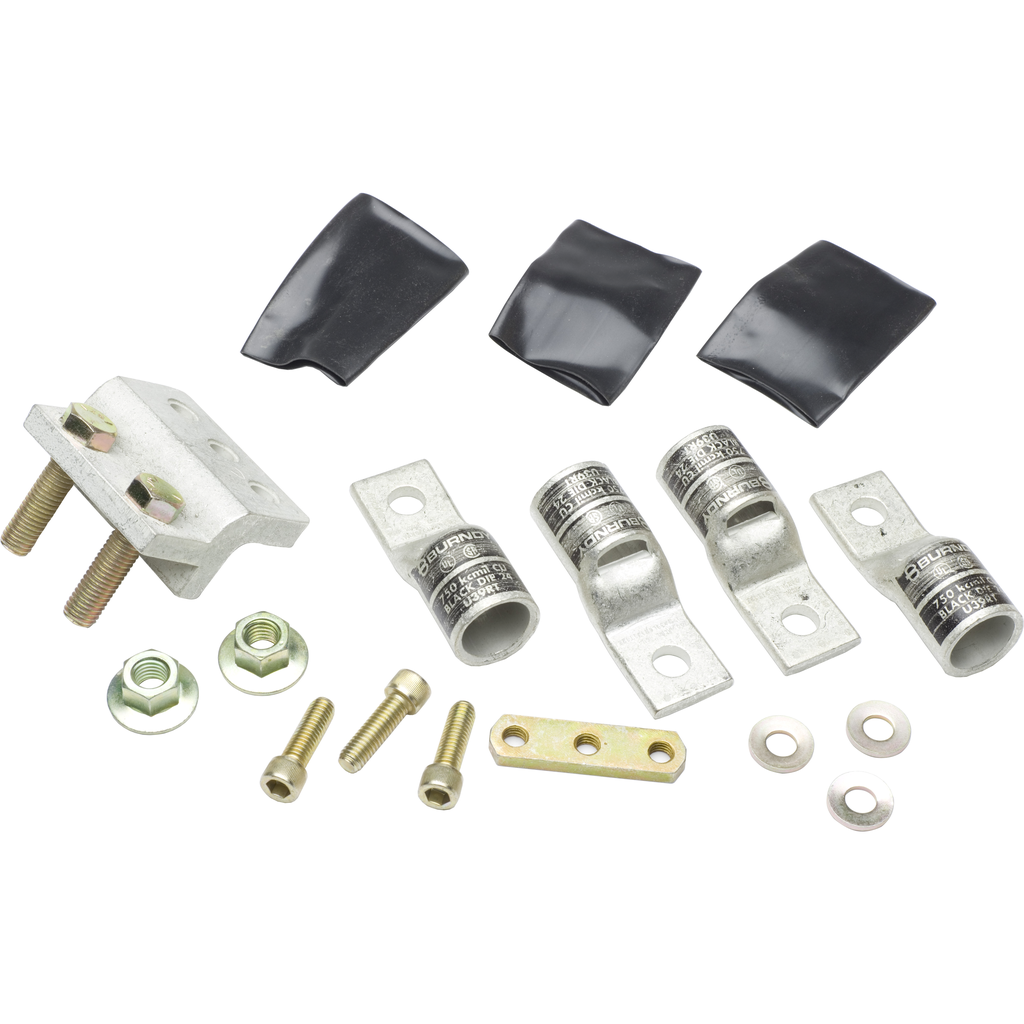

1200A COPPER R-FRAME MOULDED CASE CIRCUIT BREAKER COMPRESSION LUG KIT
Specifications
| Range Of Product | PowerPact R |
|---|---|
| Circuit Breaker Type | R-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 4 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 1200-1200 A |
| Mounting Mode | I-Line |
| Awg Gauge | 500...750 kcmil aluminium/copper |
| Product Compatibility | Compact NS NS1600b...3200 |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407013EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407013EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
Documents
- Spec Sheet
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Compression Lug Kits for M-, P-, and R-Frame Circuit Breakers Installation Instructions - 48049-147-02 (pdf)
- I-Line Circuit Breaker Distribution Panelboards Installation Instructions - 80043-309-20 (pdf)
