CYA060HD

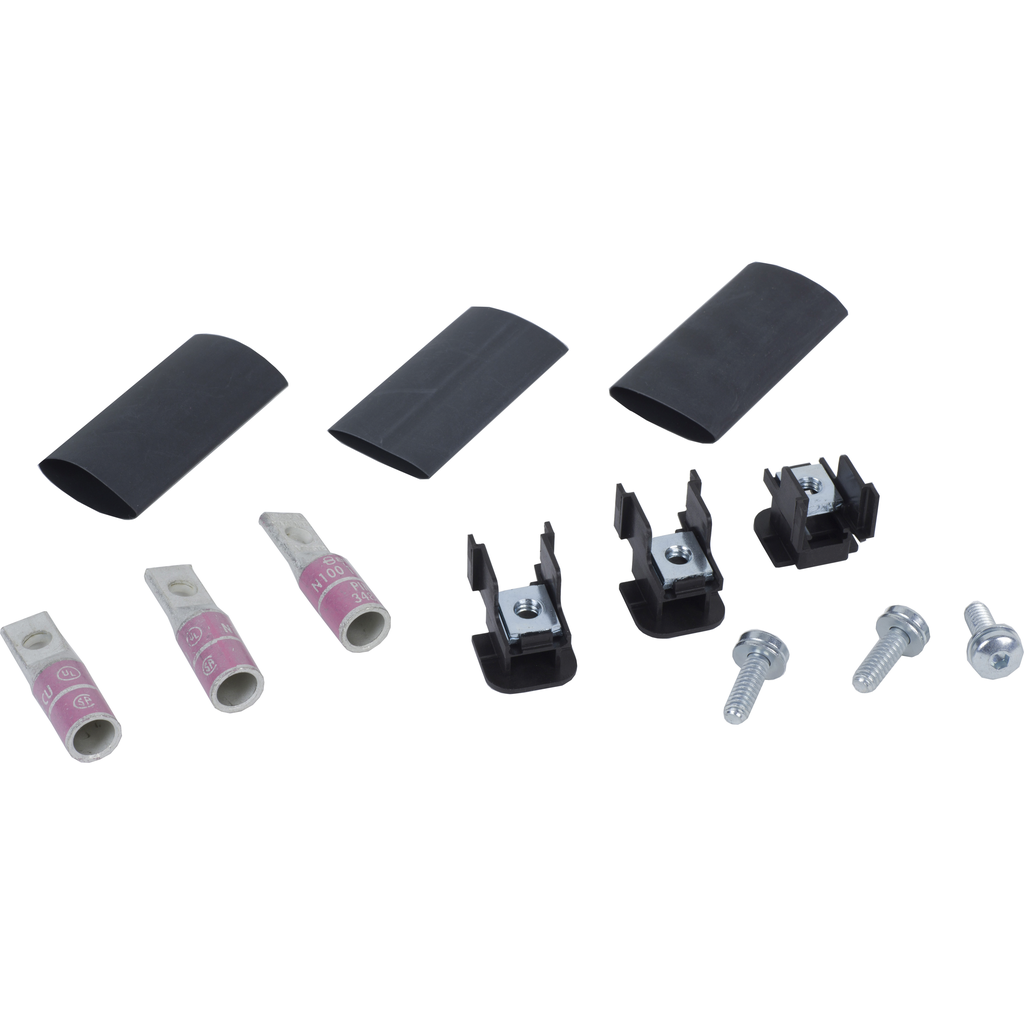

Connection accessory, PowerPacT H, compression lug kit, 60A, 6 to 1/0 AWG, Cu, qty 3
Specifications
| Circuit Breaker Type | H-frame |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 60-60 A |
| Tightening Torque | 9.0-10.2 N.m (AWG 6...AWG 1/0) |
| Location Of Connection | upstream |
| Awg Gauge | AWG 6...AWG 1/0 copper |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311006EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Compression Lug Kits for H- and J-frame Circuit Breakers - Installation Instructions - 48940-225-01 (pdf)
- Lug Kits for R-Frame Circuit Breakers (Catalog Numbers AL2500RK, YA2000R3, YA2000R5, and YA2500R7) Installation Instructions - 48049-255-02 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
