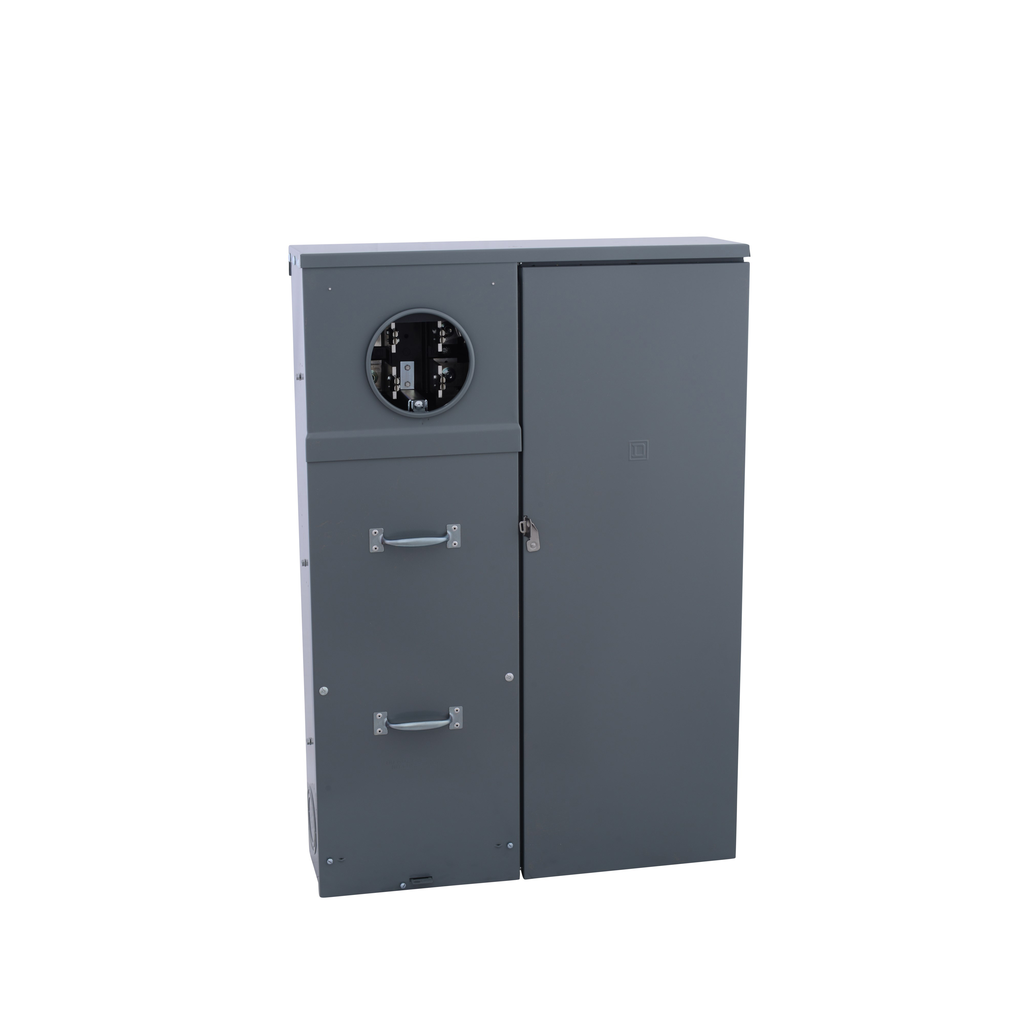

Meter mains, QO, CSED, ringed socket, 400A, surface mount, Class 320 manual bypass
This combination service entrance device has a ring type socket. Unit will only work with underground service. The interior has a single main service disconnect. Unit has a 400 A single phase current rating. It has a short circuit current rating of 25 kA. The meter socket bypass is a Type Class 320 with a manual bypass. This unit has a factory installed service disconnect. This unit is surface mount or can be converted to semi flush by using the appropriate flange kit. This unit will accept 4 AWG to 250 kcmil copper or aluminum wire. This combination service entrance device is 43.0 inches tall, 28.25 inches wide and 7.87 inches deep. This combination service entrance device is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | Meter Mains |
| Warranty | 18 months |
| Height | 43.00 in |
| Short-Circuit Current | 25 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Hub Type | A-L |
| Branch Circuit Breaker Rated Current | 200 A |
| Bypass Type |
|
| Meter Socket Type | ringed |
| Service Feed Location | UG |
| Service Disconnect Rated Current | 400 A |
| Line Rated Current | 400 A |
| Awg Gauge |
|
| Width | 28.25 in |
| Electrical Connection |
|
| Depth | 7.87 in |
| Number Of Circuits | 0 |
| Number Of Spaces | 0 |
| Network Number Of Phases | 1 |
| Device Composition | service disconnect (factory installed) |
| Device Mounting |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | UL E-6294 |
