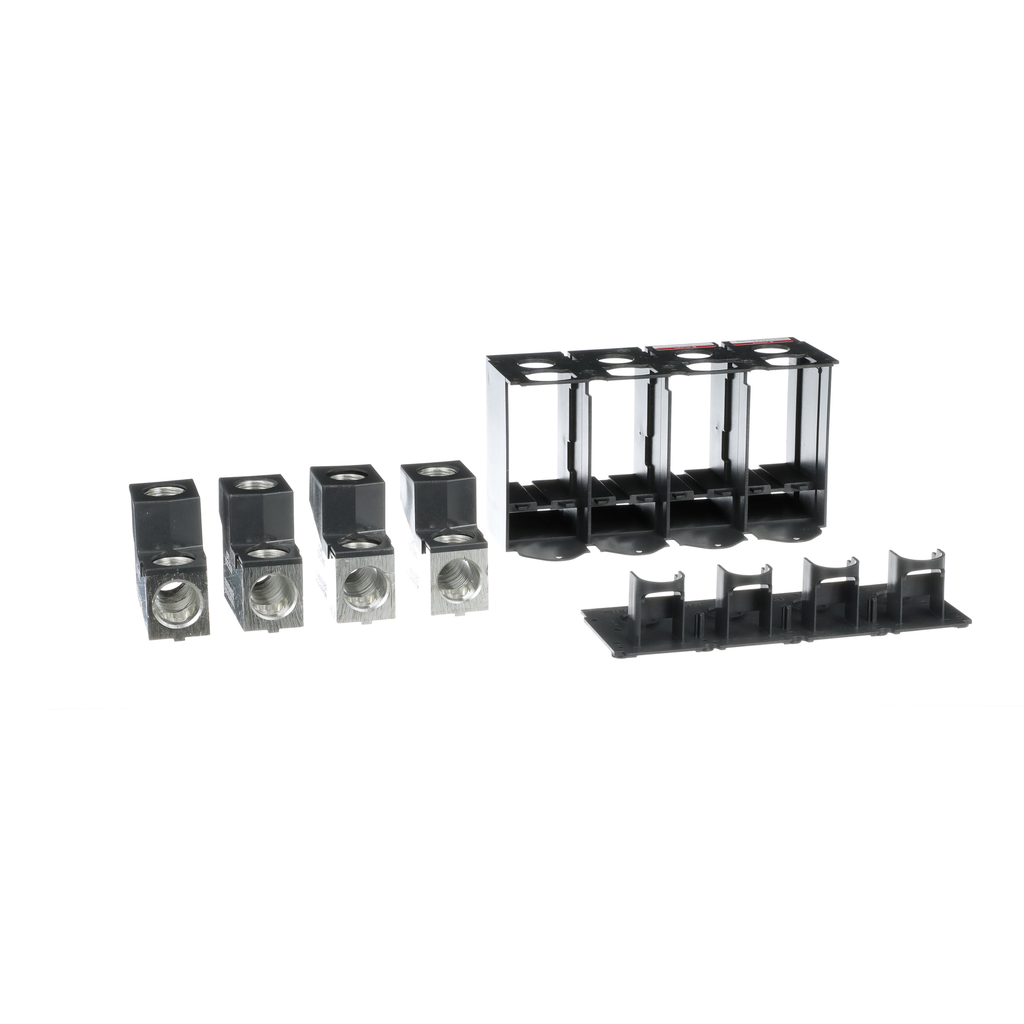

CU600LS52K4 - Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 400/600A, 2/0 AWG to 500kcmil, copper, med shield, qty 4

CU600LS52K4

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 400/600A, 2/0 AWG to 500kcmil, copper, med shield, qty 4

This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, mechanical lug is a connection accessory with a rated current of 600A and is made of copper. The lugs accept 2/0 AWG to 500kcmil copper conductors. The lugs comply with UL and CSA standards. This PowerPact L, mechanical lug is a connection accessory with a rated current of 600A and is made of copper.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	PowerPact L
Circuit Breaker Type	L-Frame
Accessory / Separate Part Category	connection accessory
Quantity Per Set	set of 4
Product Or Component Type	mechanical lug
Warranty	18 months
Line Rated Current	600-600 A
Mounting Mode	unit mount
Tightening Torque	50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Kcmil Size	600 kcmil
Location Of Connection	downstream upstream
Awg Gauge	AWG 3/0...600 kcmil aluminium
Product Compatibility	PowerPact L PowerPact
Material	copper
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure	ENVPEP1410004EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	CSA UL

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 400/600A, 2/0 AWG to 500kcmil, copper, med shield, qty 4
