CU400L61K3

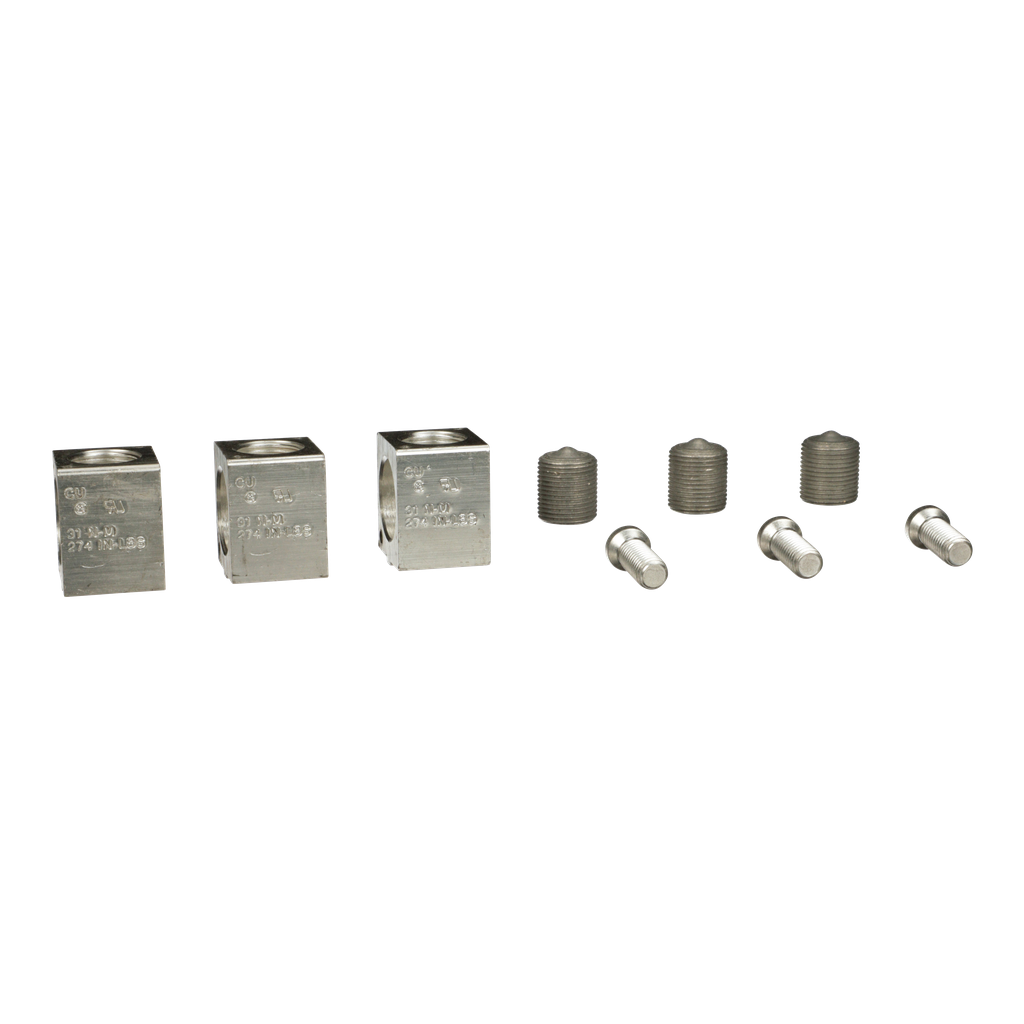

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250/400A, 2 AWG to 600kcmil, copper, qty 3
This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, mechanical lug is a connection accessory with a rated current of 400A and is made of copper. The lugs accept 2 AWG to 600kcmil copper conductors. The lugs comply with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact L |
|---|---|
| Circuit Breaker Type | L-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 250-400 A |
| Mounting Mode | unit mount |
| Tightening Torque | 31-31 N.m 35-300 mm² (AWG 2...600 kcmil) |
| Location Of Connection |
|
| Awg Gauge | AWG 2...600 kcmil copper |
| Product Compatibility | PowerPact L PowerPact L-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406010EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
