CU150HD

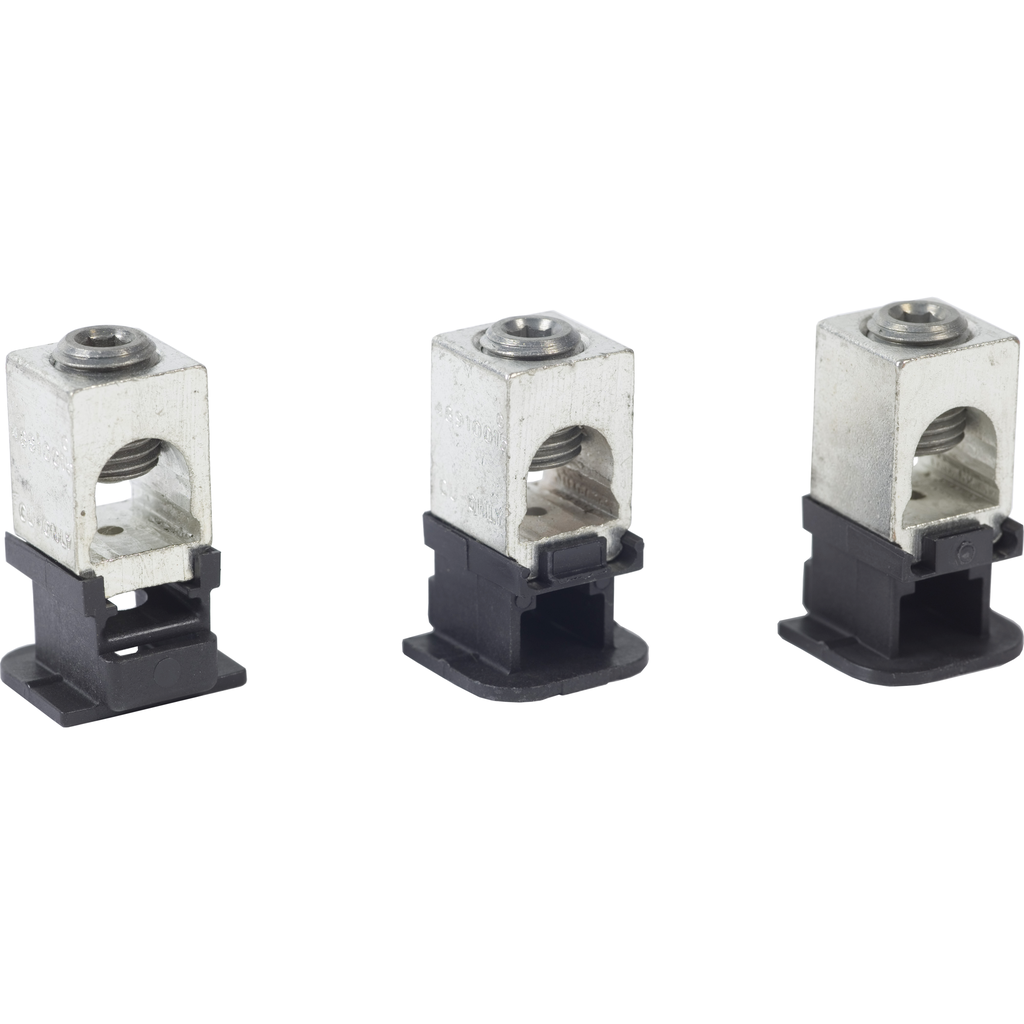

Circuit breaker accessory, PowerPacT H, lug kit, mechanical, 15A to 150A, 14 to 2/0 AWG, copper, qty 3
This lug kit is for PowerPacT H circuit breakers. This PowerPacT H, mechanical lug is a connection accessory with a rated current of 15A to 150A and is made of copper. The lugs accept 14 AWG to 1/0 AWG copper conductors. The lugs comply with UL and CSA standards. This PowerPact H, mechanical lug is a connection accessory with a rated current of 50-150A and is made of copper.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact H |
|---|---|
| Circuit Breaker Type | HD/HG/HJ/HL |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 50-150 A |
| Tightening Torque | 14-14 N.m 2.5-70 mm² (AWG 14...AWG 2/0) |
| Location Of Connection |
|
| Awg Gauge | AWG 14...AWG 2/0 copper |
| Product Compatibility | PowerPact H PowerPact H-Frame |
| Material | copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
