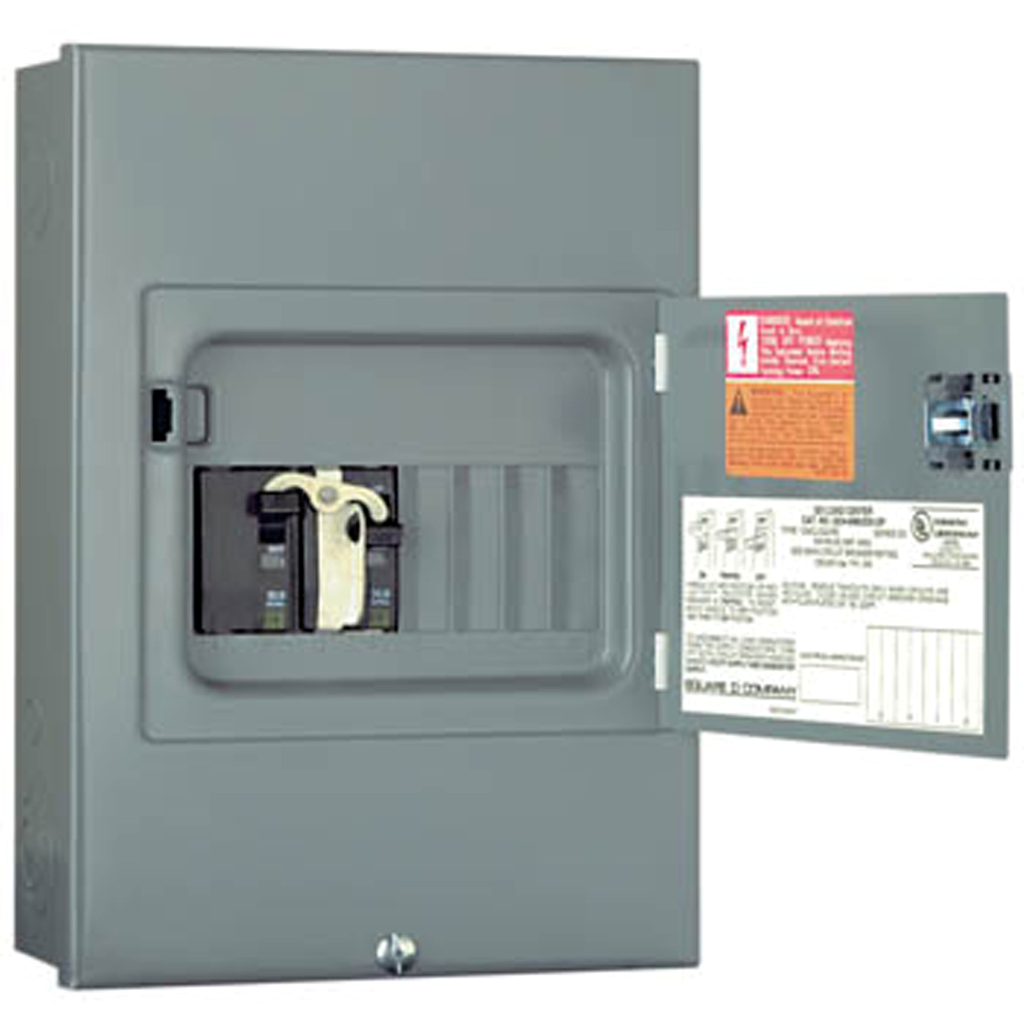

Cover Type | surface cover |
---|---|
Range Of Product | QO |
Product Or Component Type | panel |
Height | 324 mm |
Tightening Torque | Cover 20 lb.in |
Number Of Tandem Circuit Breakers | 8 |
[Ue] Rated Operational Voltage | 120/240 V AC |
Line Rated Current | 30 A |
Awg Gauge | AWG 14...AWG 8 aluminium/copper |
Wiring Configuration | 3-wire |
Width | 229 mm |
Electrical Connection | lugs |
Depth | 95 mm |
Number Of Circuits | 4 |
Number Of Spaces | 4 |
Load Center Type | main breaker |
Phase | 1 phase |
Box Number | 4 |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2101006 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1 indoor generator |
Ambient Air Temperature For Operation |
|
