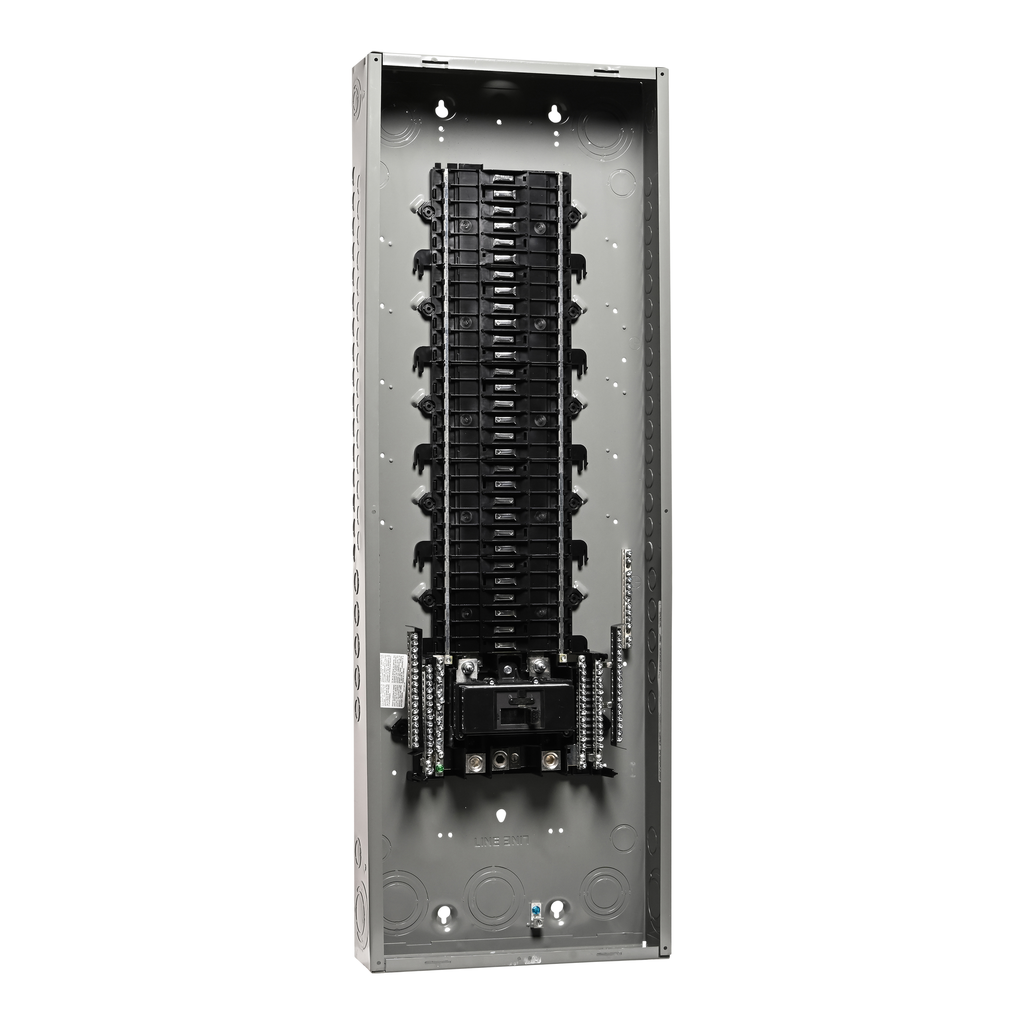

Loadcentre, QO, 1 phase, 60 spaces, 80 circuits, 200A main breaker, PoN, NEMA1, combo cover, CSA
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as combination covers which are included her Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 200 A and 1 phase. This system provides 60 spaces in a NEMA 1 enclosure and is plug on neutral ready. A combination cover is supplied with this load center.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Cover Type | combination flush/surface cover |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Height | 1048 mm |
| Short-Circuit Current | 22 kA |
| Tightening Torque | Cover 20 lb.in |
| [Ue] Rated Operational Voltage | 240 V AC |
| Line Rated Current | 200 A |
| Width | 362 mm |
| Depth | 95 mm |
| Number Of Circuits | 80 |
| Number Of Spaces | 60 |
| Load Center Type | PoN Convertible Mains (breaker) |
| Phase | 1 phase |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | CSA |
| Nema Degree Of Protection | NEMA 1 indoor |
| Ambient Air Temperature For Operation |
|
