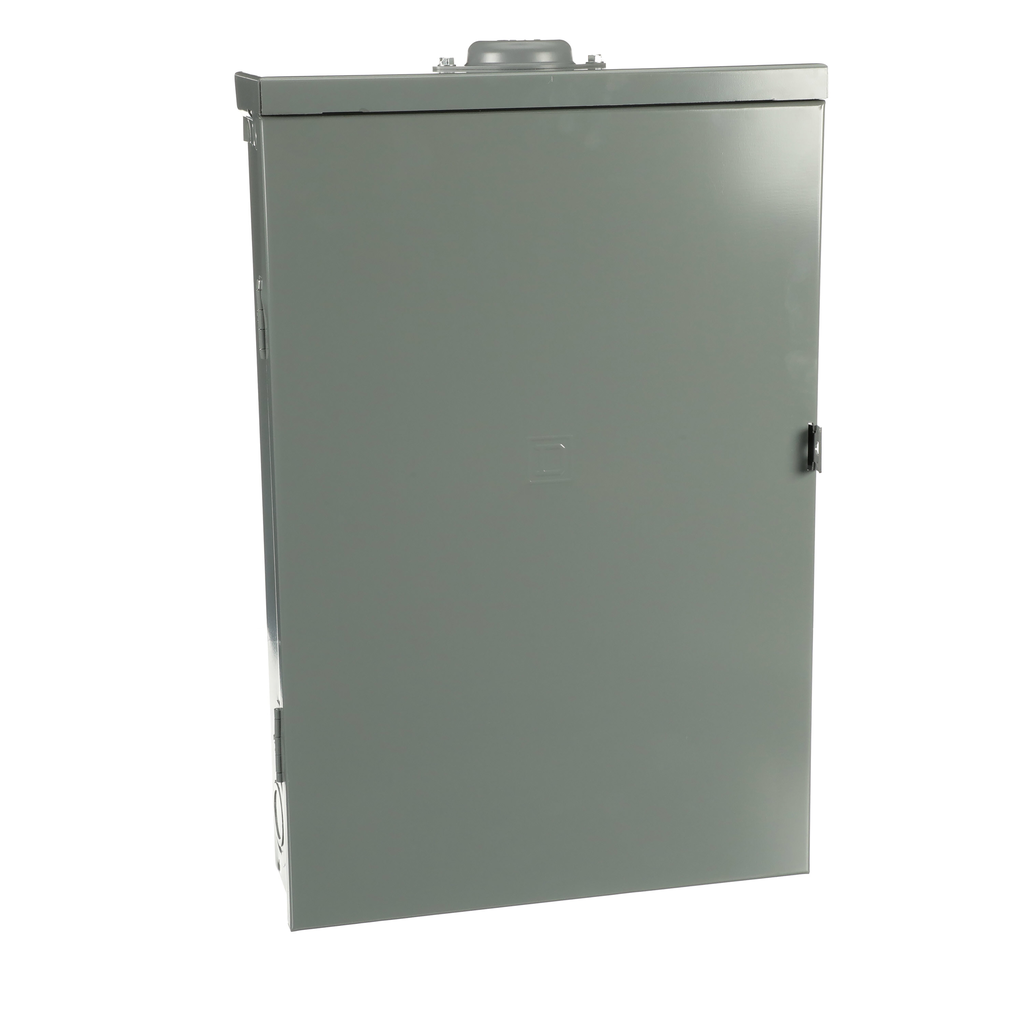

CQO124M100PRB – Loadcentre, QO, 1 phase, 24 spaces, 44 circuits, 100A main breaker, PoN, NEMA3R, CSA
CQO124M100PRB
Loadcentre, QO, 1 phase, 24 spaces, 44 circuits, 100A main breaker, PoN, NEMA3R, CSA
Specifications
Range Of Product QO
Product Or Component Type Load Center
Enclosure Type weatherproof enclosure
Height 531 mm
Short-Circuit Current 22 kA
[Ue] Rated Operational Voltage 240 V AC
Line Rated Current 100 A
Width 362 mm
Depth 95 mm
Number Of Circuits 44
Number Of Spaces 24
Load Center Type PoN Convertible Mains (breaker)
Phase 1 phase
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
Eu Rohs Directive Compliant
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Product Certifications CSA
Nema Degree Of Protection NEMA 3R outdoor
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
