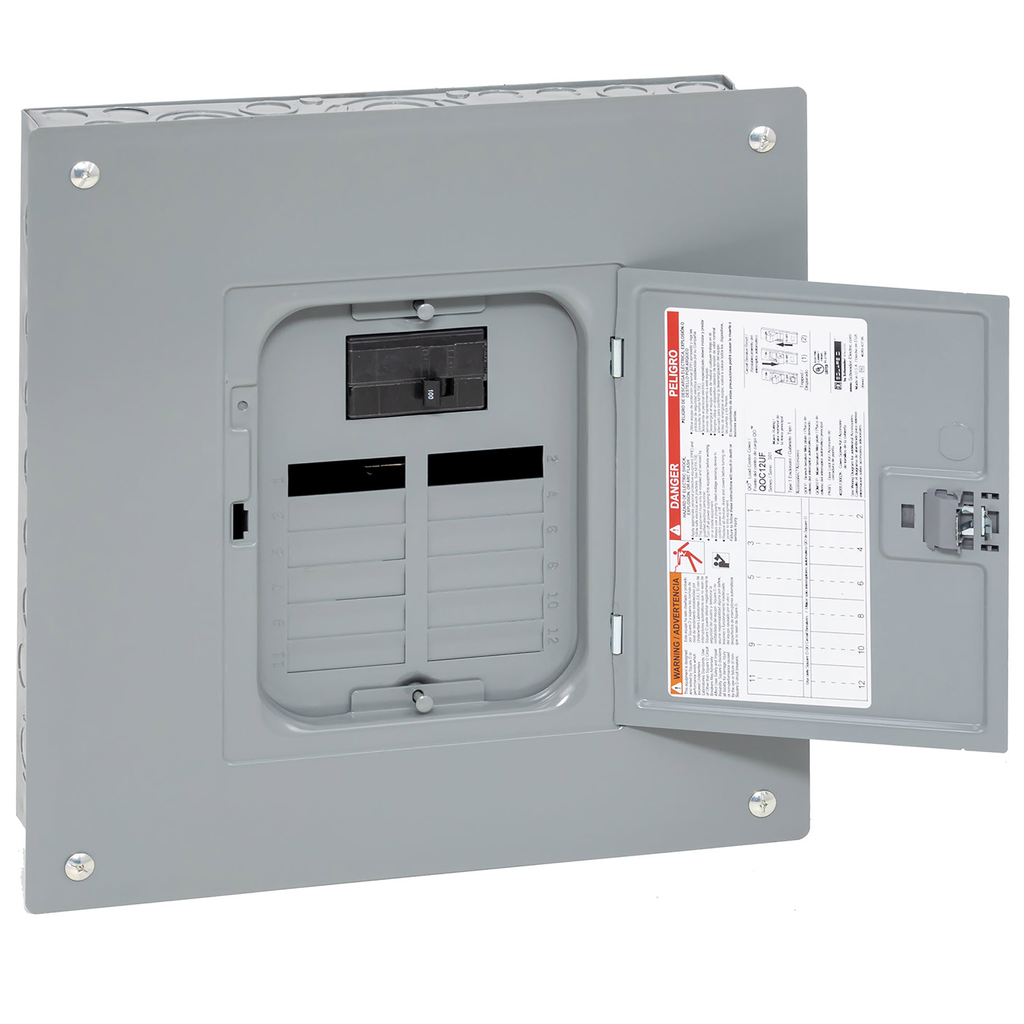

CQO112M100PC – Loadcentre, QO, 1 phase, 12 spaces, 24 circuits, 100A main breaker, PoN, NEMA1, combo cover, CSA
CQO112M100PC
Loadcentre, QO, 1 phase, 12 spaces, 24 circuits, 100A main breaker, PoN, NEMA1, combo cover, CSA

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides a 100A main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is CSA rated.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Cover Type combination flush/surface cover
Range Of Product QO
Product Or Component Type Load Center
Height 379 mm
Short-Circuit Current 22 kA
Tightening Torque Cover 20 lb.in
[Ue] Rated Operational Voltage 240 V AC
Line Rated Current 100 A
Width 362 mm
Depth 95 mm
Number Of Circuits 24
Number Of Spaces 12
Load Center Type PoN Convertible Mains (breaker)
Phase 1 phase
Net Weight 7.500 kg
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
Eu Rohs Directive Compliant
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Product Certifications CSA
Nema Degree Of Protection NEMA 1 indoor
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
