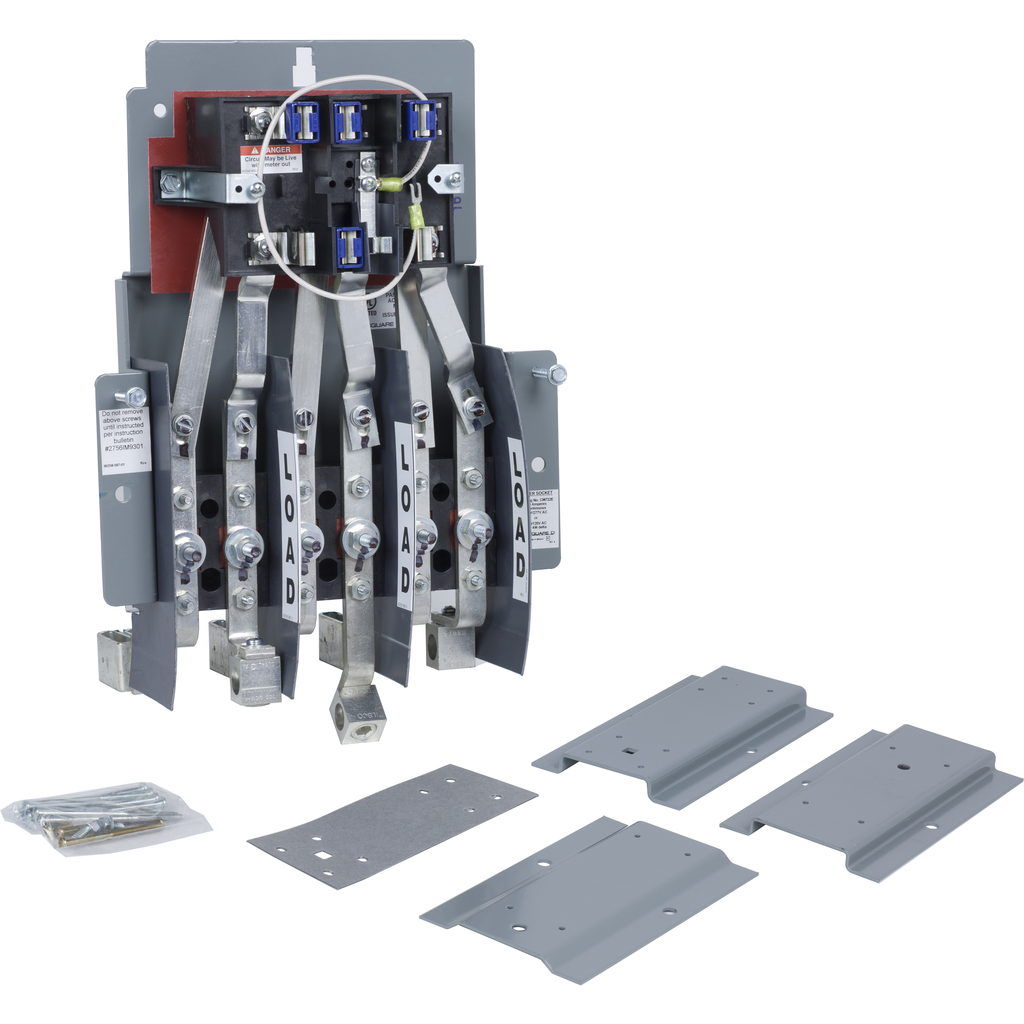

Meter socket, ringed, 1 phase, 3 wire, 7 jaws, solid top, test block bypass, no jaw release
Individual meter sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This meter socket has a test block bypass. This meter socket is for 3 phase 4 wire systems with an operational voltage of 208Y/120 VAC, 240/120 VAC delta or 480Y/277 VAC. This meter socket has 7 jaws without jaw release. This unit can be for a feed from an underground service. The plug in conections will accept 6 AWG to 350 kcmil copper or aluminum wire. This meter socket is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Hub Type | solid top |
|---|---|
| Meter Socket Type | ringed |
| Product Or Component Type | Meter Socket |
| Warranty | 18 months |
| Service Feed Location | UG |
| [Ue] Rated Operational Voltage |
|
| Bypass Type | test block bypass |
| Awg Gauge |
|
| Wiring Configuration | 4-wire |
| Electrical Connection | plug-in |
| Number Of Jaws | 7 without jaw release |
| Phase | 3 phase |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | UL Listed |
