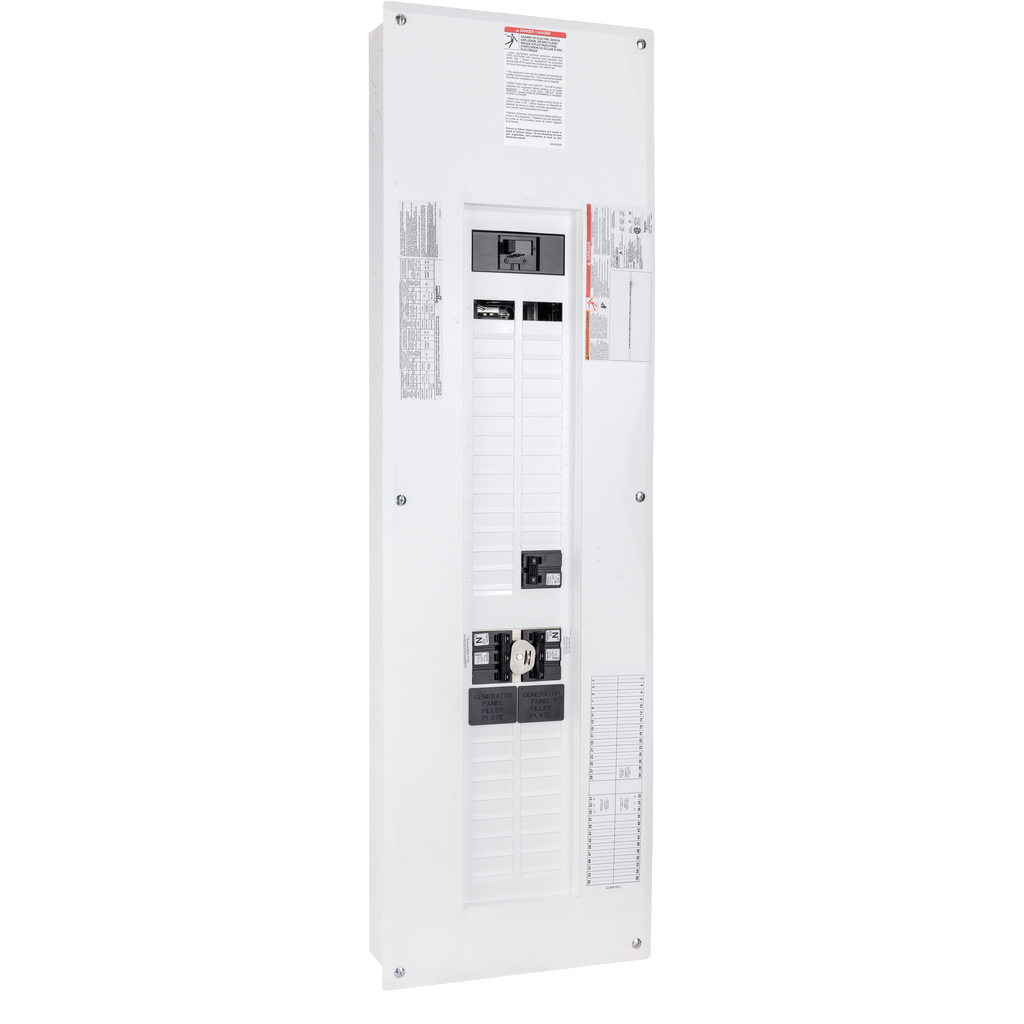

Generator panel, Homeline, 68 spaces, 100A main breaker, NEMA1, CSA
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline All in one generator panel is supplied with main breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 68 spaces in a NEMA 1 indoor enclosure The surface cover is to be ordered separately. The electrical connections are box lugs. The box lugs will accept a wire range 4 AWG to 250 kcmil aluminum or copper wire. This Homeline load center has a height of 26.04 inches, a width of 14.25 inches, and depth of 3.75 inches. Homeline load centers are CSA Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 1 indoor |
|---|---|
| Range Of Product | Homeline |
| Provided Equipment | circuit-breaker 3 ) |
| Line Rated Current |
|
| Product Or Component Type |
|
| Number Of Circuits | 94 |
| Number Of Spaces | 68 |
| Load Center Type | main breaker |
| Height | 1235 mm |
| Short-Circuit Current | 22 kA |
| Width | 362 mm |
| Depth | 95 mm |
| Box Number | 25 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation |
|
