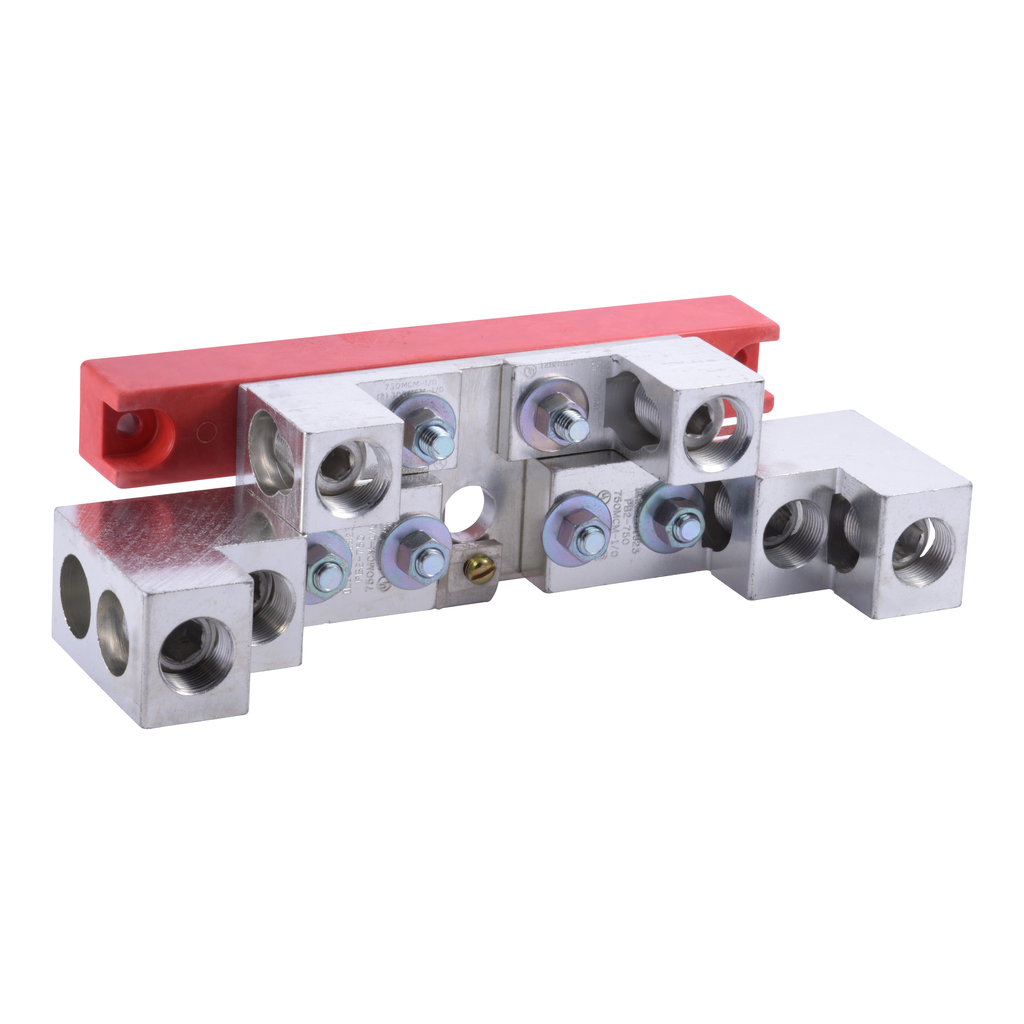

CH600SN - Safety switch accessory, solid neutral assembly, heavy duty, copper/aluminum, 600A

CH600SN

Add to Quote Catalogue

Series Name	heavy duty
Range Of Product	Square D
Product Or Component Type	safety switch solid neutral assembly
Tightening Torque	340 lbf.in, AWG 1/0...750 kcmil, copper or aluminium 550 lbf.in, 2 x AWG 1/0...2 x 300 kcmil, copper or aluminium 550 lbf.in, AWG 1/0...750 kcmil
Line Rated Current	400 A E1 600 A E4
Awg Gauge	AWG 1/0...750 kcmil copper or aluminium 2 x AWG 1/0...2 x 300 kcmil copper or aluminium
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content Performance	Halogen free plastic parts product
