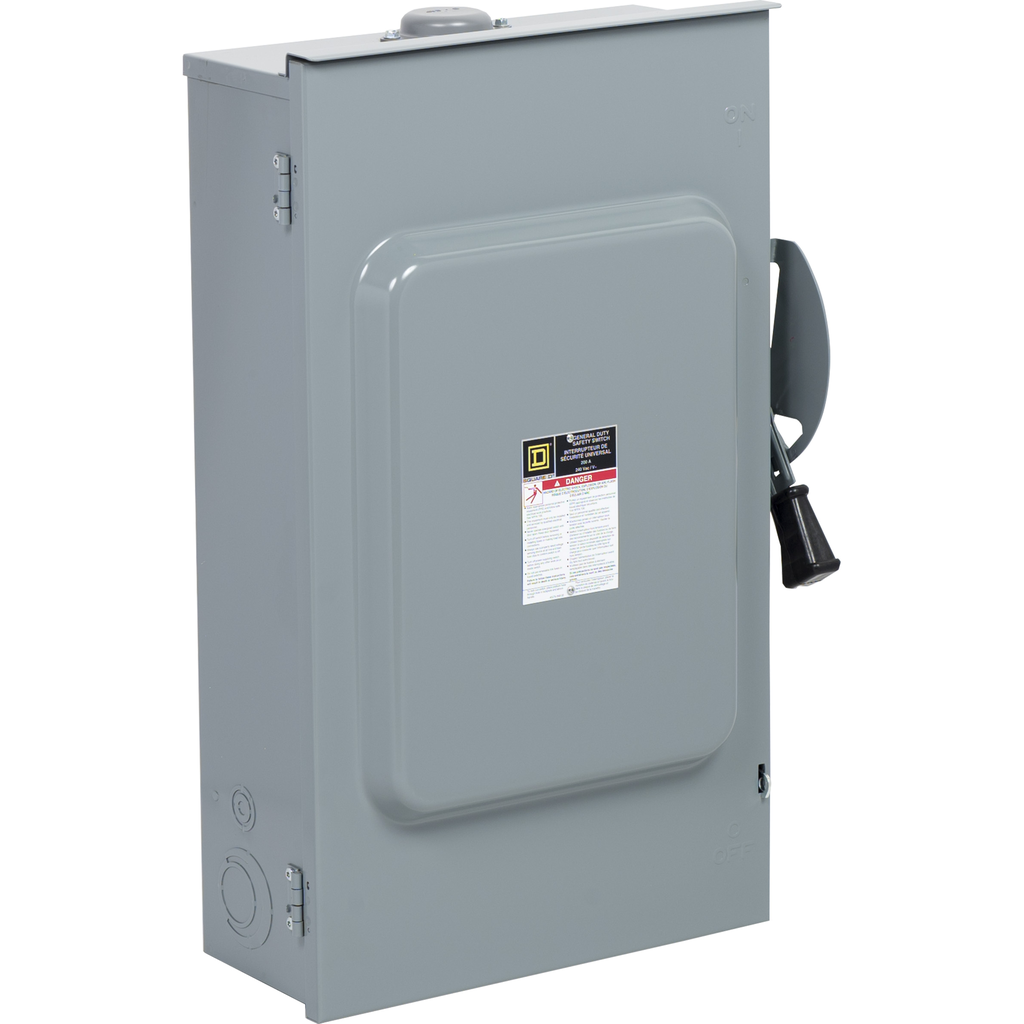

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 200A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 6/250 kcmil, aluminium/copper. This switch is certified to UL standards Dinemsions for this product are 29.25 in (H), 19 in (W), 8.5 in (D). General Duty safety switchs come with an 18 months warranty.
Brand: Schneider Electric
Add to Quote CatalogueSeries Name | general duty |
---|---|
Product Or Component Type | Single Throw Safety Switch |
Warranty | 18 months |
Disconnector Device Type | fusible disconnect |
Height | 29.25 in |
Device Mounting | surface |
Tightening Torque | 275-275 lbf.in (AWG 6...250 kcmil) |
Electrical Connection | lugs |
Awg Gauge | AWG 6...250 kcmil copper or aluminium |
Width | 19 in |
Depth | 8.5 in |
Device Composition | neutral (factory installed) |
Short-Circuit Current | 100 kA maximum cartridge |
Number Of Poles | 3 |
[Ue] Rated Operational Voltage | 120/240 V AC |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1305032 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | CSA |
Nema Degree Of Protection | NEMA 3R galvannealed steel |
