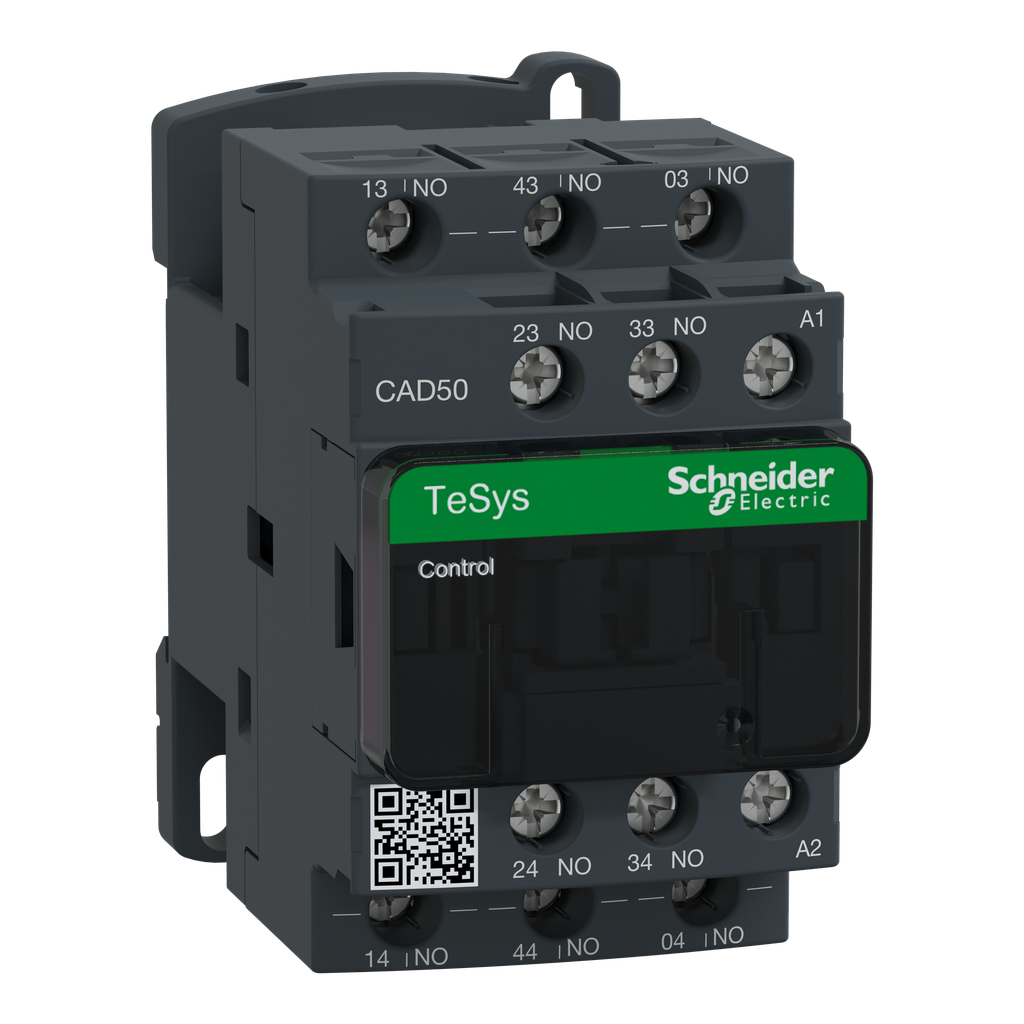

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueContactor Application | control circuit |
---|---|
Product Or Component Type | control relay |
Product Name | TeSys CAD |
Range |
|
Device Short Name | CAD |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA |
Mechanical Robustness |
|
[Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
Height | 77 mm |
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Control Circuit Voltage Limits |
|
Mounting Support |
|
Control Circuit Type | AC 50/60 Hz |
[Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Associated Fuse Rating | 10 A gG IEC 60947-5-1 |
Net Weight | 0.58 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Inrush Power In Va | 70-70 VA 50 Hz 20 °C) |
Connections - Terminals |
|
Pole Contact Composition | 5 NO |
Utilisation Category |
|
Minimum Switching Voltage | 17 V |
Maximum Operating Rate | 180 cyc/mn |
Tightening Torque |
|
Mechanical Durability | 30 Mcycles |
Hold-In Power Consumption In Va | 8-8 VA 50 Hz 20 °C) |
Operating Time |
|
Width | 45 mm |
Depth | 84 mm |
[Ui] Rated Insulation Voltage |
|
[Icw] Rated Short-Time Withstand Current |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1501004 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1501004 |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Ambient Air Temperature For Operation |
|
Standards |
|
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH IEC 60068 |
Ip Degree Of Protection | IP2X front face VDE 0106 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
