CAD32G7TQ
Relay - 600 V 10 Amp Tesys + Options

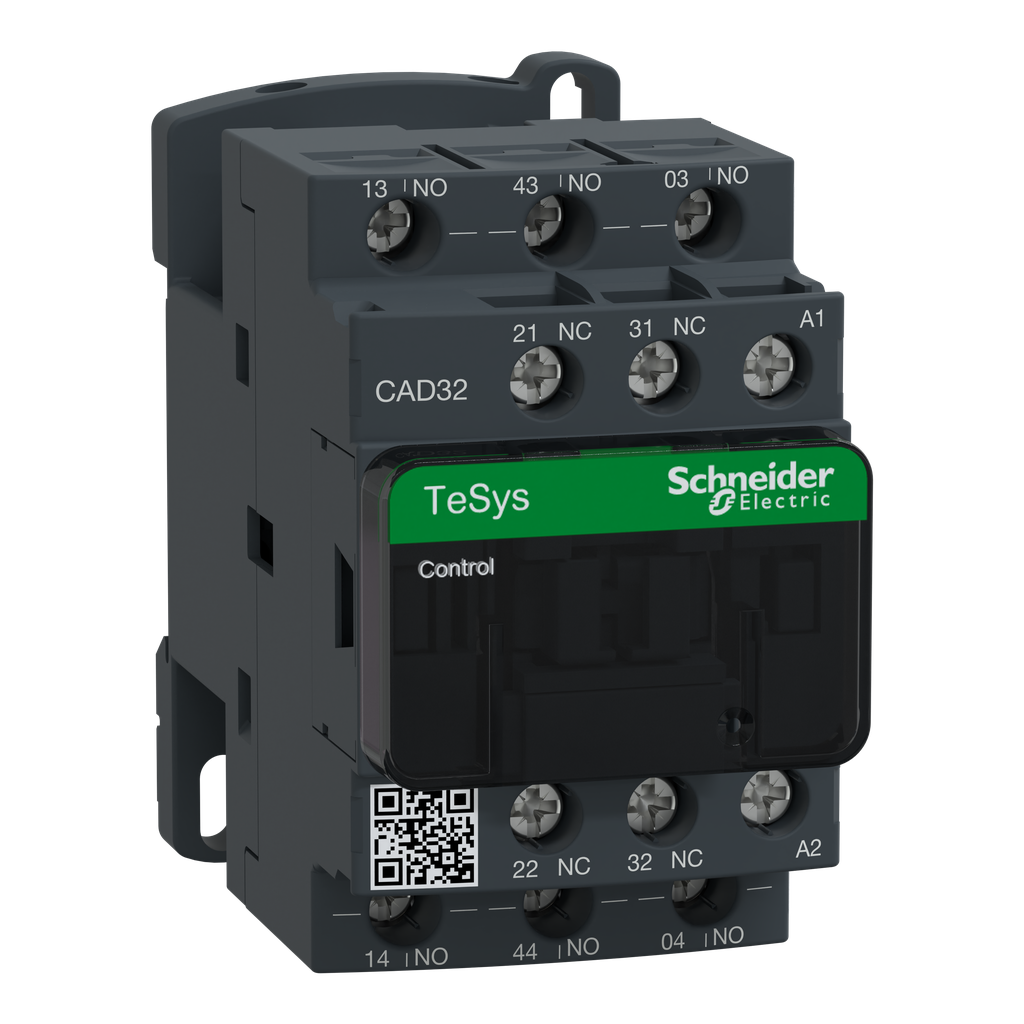

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Circuit Type | AC |
|---|---|
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Contactor Application | control circuit |
| Product Or Component Type | auxiliary contactor |
| Product Name |
|
| Range |
|
| Pole Contact Composition | 3 NO + 2 NC |
| Connections - Terminals |
|
| Utilisation Category |
|
| Quantity Per Set | set of 10 |
| Suppressor Technology | without built-in |
| Device Short Name | CAD |
| Coil Type | standard |
| Warranty | 18 months |
| Non-Overlap Time |
|
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Height | 77 mm |
| Control Circuit Voltage Limits |
|
| [Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
| Insulation Resistance | > 10 MOhm |
| Irms Rated Making Capacity | 140 A <= 690 V AC IEC 60947-5-1 |
| Associated Fuse Rating | 10 A gG <= 690 V IEC 60947-5-1 |
| Net Weight | 0.58 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Inrush Power In Va | 70-70 VA 20 °C) |
| Contact Operation | mechanically linked IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage |
|
| Maximum Operating Rate | 3 cyc/s 20 °C |
| Minimum Switching Current | 5 mA |
| Hold-In Power Consumption In Va | 8-8 VA 50 Hz 20 °C) |
| Operating Time |
|
| Width | 45 mm |
| Depth | 86 mm |
| Tightening Torque | 1.7-1.7 N.m |
| Minimum Switching Voltage | 17 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1501004 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1501004 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP2X conforming to VDE 0106 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Protective Treatment | TH IEC 60068 |
| Operating Altitude | 9842.52 ft (3000 m) without derating |
