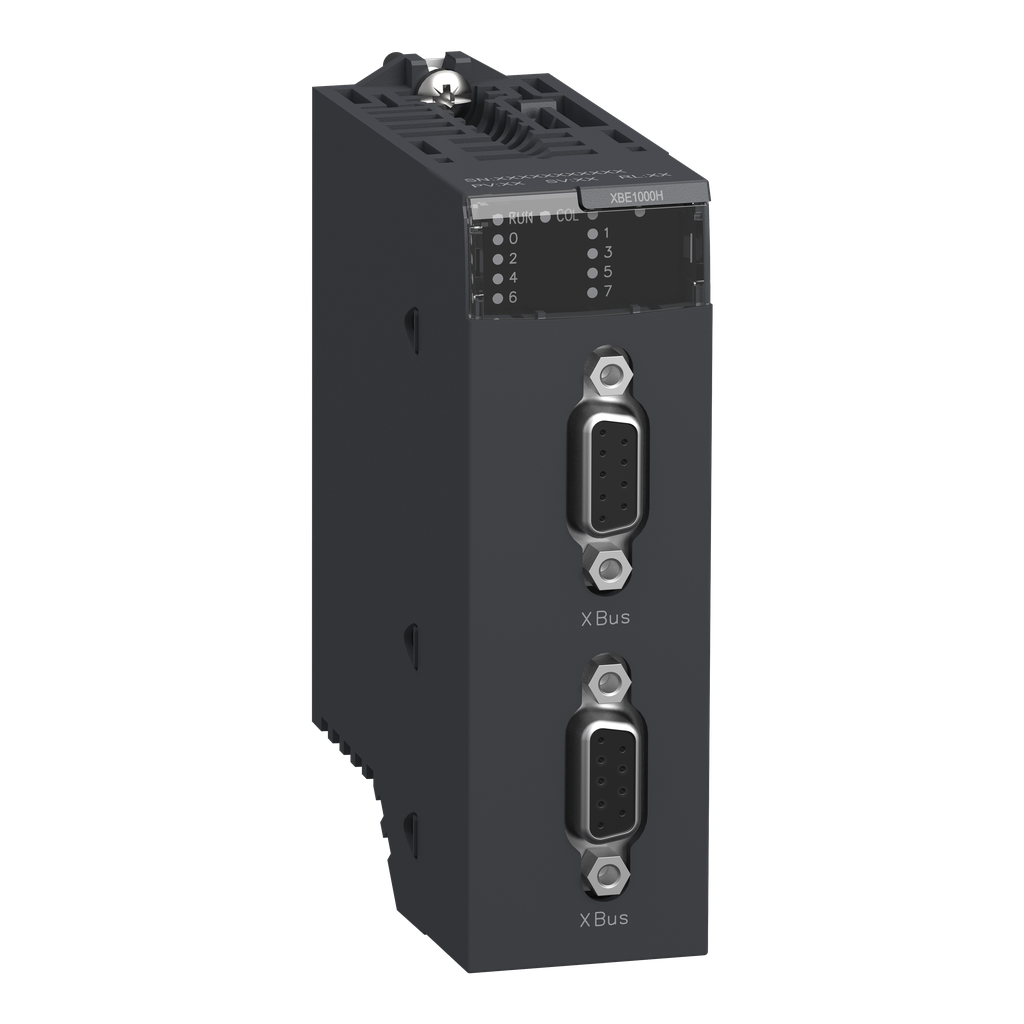

backplane expander, Modicon M340, for multirack configuration, ruggedized
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This ruggedized backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for severe environments, medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP1200, BMXXBP0800, BMXXBP0600 and BMXXBP0400 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Accessory / Separate Part Designation | ruggedized backplane expander |
| Accessory / Separate Part Category | extension accessory |
| Product Specific Application | for severe environments |
| Product Compatibility |
|
| Accessory / Separate Part Type | backplane |
| Accessory / Separate Part Destination | for multiracks configuration |
| Warranty | 18 months |
| Electrical Connection | 2 female connectors SUB-D 9 |
| Current Consumption |
|
| Local Signalling |
|
| Module Format | standard |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Environmental Characteristic |
|
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
