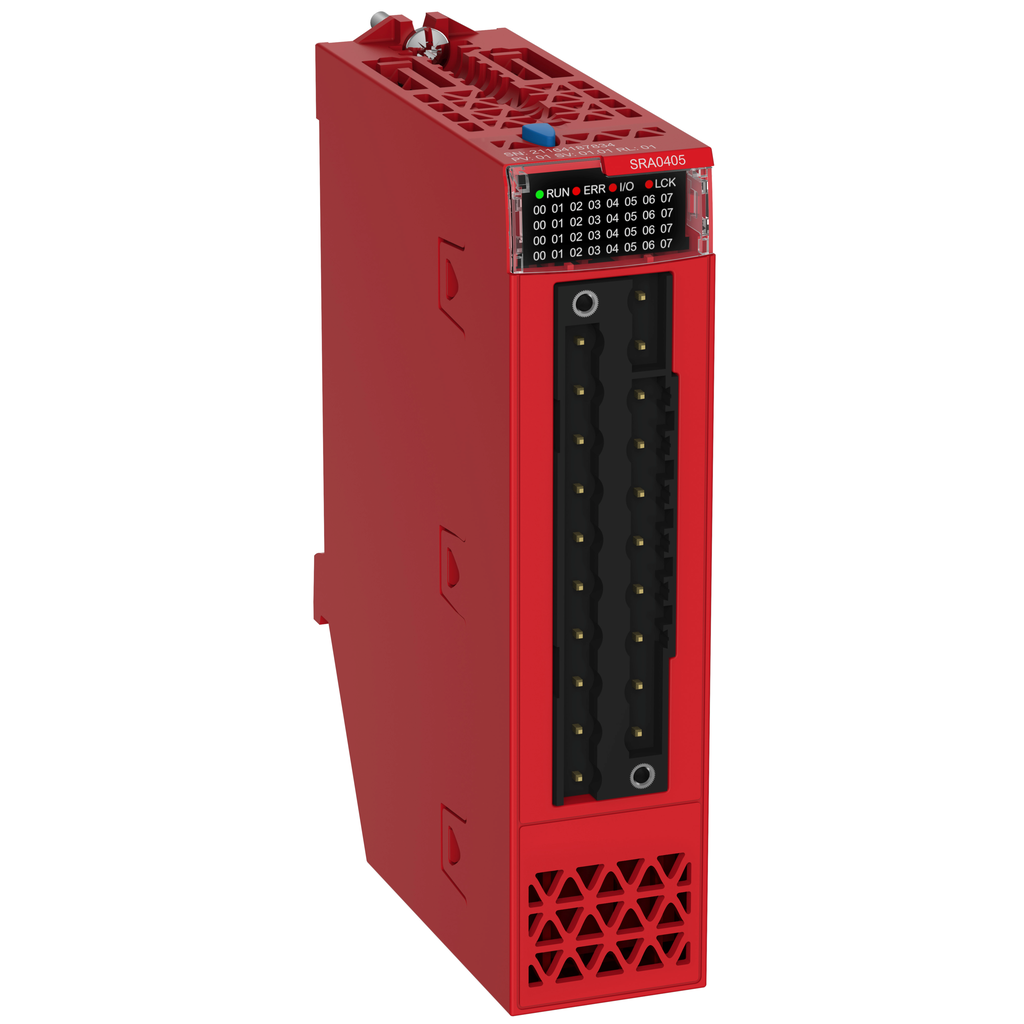

BMXSRA0405 – safety relay output module, Modicon X80, 4 isolated outputs, 24 to 230V AC, 24V DC
BMXSRA0405
safety relay output module, Modicon X80, 4 isolated outputs, 24 to 230V AC, 24V DC

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 4 discrete relay outputs. It offers discrete output voltage ranges from 24V AC to 240V AC, 10V AC to 264V AC and 12V DC to 24V DC, 10V DC to 34V DC. It is an IP20 rated product. It weighs 0.145kg. It is to be used with BMXFTB2020 spring type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Discrete Output Type relay
Range Of Product Modicon X80
Discrete Output Number 4 EN/IEC 61131-2
Discrete Output Voltage
  • 24...240 V 10...264 V AC
  • 12...24 V 10...34 V DC
Product Or Component Type discrete output module
Mtbf Reliability 624000 H
Minimum Switching Current 10 mA 5 V DC
Switching Frequency <= 50 Hz
Status Led
  • 1 LED (Green) module operating (RUN)
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) module error (ERR)
  • 1 LED (Red) module I/O
Insulation Resistance > 10 MOhm 500 V DC
[Ith] Conventional Free Air Thermal Current 5 A
Protection Type
  • external short-circuit protection
  • overvoltage protection, inductive AC
  • overvoltage protection, inductive DC
  • external overload protection
Power Dissipation In W 3.9 W
Net Weight 0.145 kg
Maximum Switching Voltage 230 V AC
Electrical Durability
  • AC-15 80000 cycles 250 VA 250 V -25-60 °C
  • AC-15 80000 cycles 500 VA 250 V -25-60 °C
  • AC-15 80000 cycles 750 VA 250 V -25-60 °C
  • AC-12 250000 cycles 250 VA 250 V -25-60 °C
  • AC-12 70000 cycles 500 VA 250 V -25-60 °C
  • AC-12 30000 cycles 1000 VA 250 V -25-60 °C
  • DC-13 80000 cycles 24 VA 24 V -25-60 °C
  • DC-13 50000 cycles 48 VA 24 V -25-60 °C
  • DC-13 30000 cycles 96 VA 24 V -25-60 °C
  • DC-12 1000000 cycles 24 VA 24 V -25-60 °C
  • DC-12 500000 cycles 48 VA 24 V -25-60 °C
  • DC-12 300000 cycles 120 VA 24 V -25-60 °C
Typical Current Consumption
  • 240 mA 3.3 V DC
  • 130 mA 24 V DC
Output Overvoltage Protection
  • use discharge diode on each output DC
  • use RC circuit on each output AC
  • use ZNO surge limiter on each output AC
Output Short-Circuit Protection use 1 fast blow fuse per channel or group of channel
Mechanical Durability 10000000 cycles
Output Overload Protection use 1 fast blow fuse per channel or group of channel
Response Time On Output
  • 12 ms activation
  • 6 ms deactivation
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070204EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0702004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation -25-60 °C
Shock Resistance 15 gn
Environmental Characteristic
  • gas resistant class Gx
  • gas resistant class 3C4
  • dust resistant class 3S4
  • sand resistant class 3S4
  • salt resistant level 2
  • mold growth resistant class 3B2
  • fungal spore resistant class 3B2
Dielectric Strength 2000 V AC 50/60 Hz 1 min
Vibration Resistance 3 gn
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Protective Treatment conformal coating
Ip Degree Of Protection IP20
