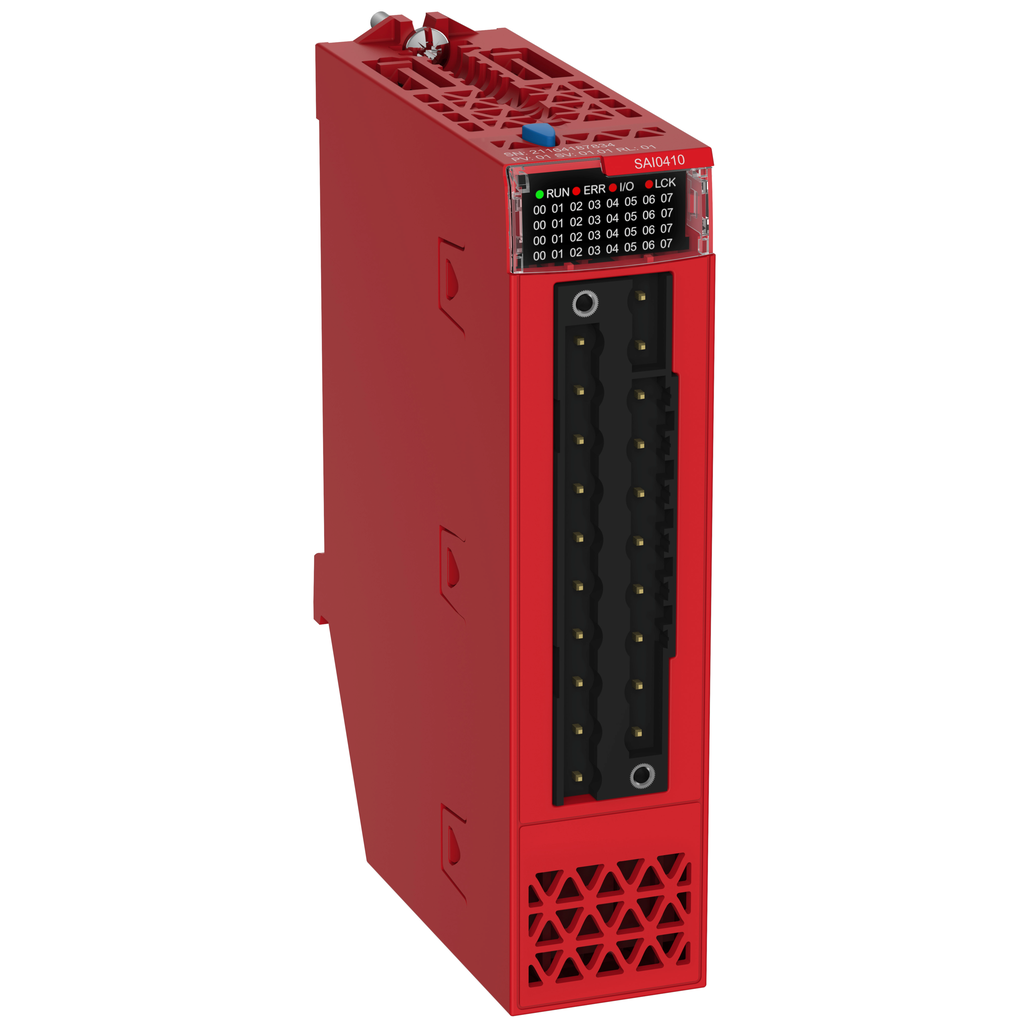

safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This safety analog input module offers 4 isolated inputs. It supports resistive type of inputs. It is the Modicon analog input module dedicated to M580 safety systems. It is connected via a 20-way removable terminal block. It features a 16-bit resolution. It has a red coating specific to Safety products. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. This module can only be used with a Safety CPU. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | analog input module |
| Input Level | high level |
| Electrical Connection | 20 ways 1 connector |
| Input Output Isolation | isolated |
| Analogue Input Number | 4 |
| Analogue Input Type | current 4...20 mA |
| Mtbf Reliability | 463000 H |
| Measurement Error | <= 0.3 % of full scale 4...20 mA - 25...60 °C |
| Maximum Conversion Value | 0...25 mA 4...20 mA |
| Type Of Filter | second order digital filtering |
| Status Led |
|
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Temperature Drift | 30 ppm/°C 4...20 mA |
| Recalibration | internal |
| Current Consumption |
|
| Analogue Input Resolution |
|
| Minimum Crosstalk Attenuation | 120 dB |
| Net Weight | 0.143 kg |
| Input Impedance | 286 Ohm |
| Isolation Voltage |
|
| Digital Value Format |
|
| Nominal Read Cycle Time | 6 ms for 4 channels |
| Operating Altitude |
|
| Analog/Digital Conversion | 16 bits |
| Measurement Resolution | 2 µA 4...20 mA |
| Permitted Overload On Inputs | 25 mA 4...20 mA |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Shock Resistance | 15 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Ip Degree Of Protection | IP20 |
