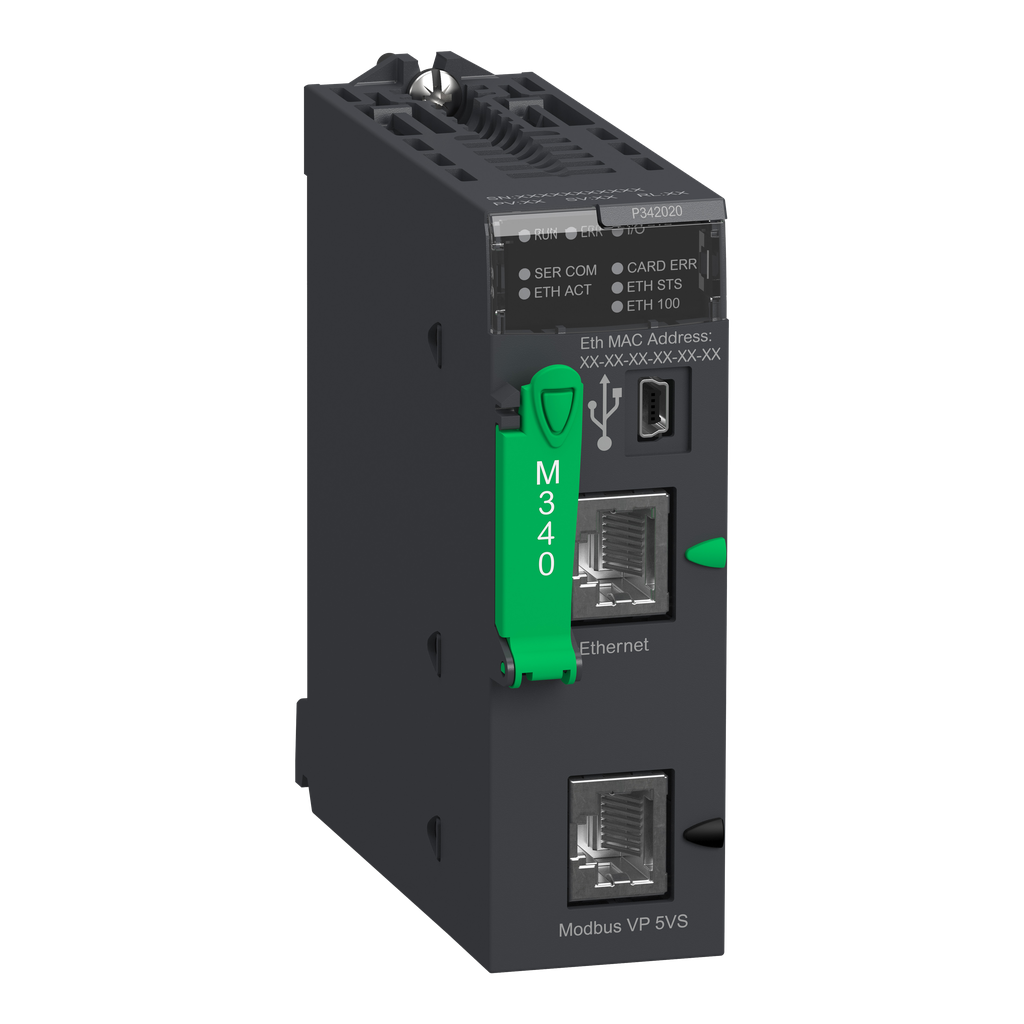

processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet
The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity™ Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus™ ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesn’t require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Number Of Racks | 4 |
| Product Or Component Type | processor module |
| Analogue I/O Processor Capacity |
|
| Number Of Slots | 11 |
| Monitoring |
|
| Concept |
|
| Number Of Application Specific Channel | 36 |
| Discrete I/O Processor Capacity |
|
| Warranty | 18 months |
| Number Of Devices Per Segment |
|
| Integrated Connection Type |
|
| Status Led |
|
| Communication Module Processor Capacity |
|
| Requests |
|
| Supply | internal power supply via rack |
| Default Size Of Object Areas |
|
| Marking | CE |
| Current Consumption | 95 mA 24 V DC |
| Net Weight | 0.205 kg |
| Application Structure |
|
| System Overhead |
|
| Communication Service |
|
| Maximum Size Of Object Areas |
|
| Maximum Tap Links Length |
|
| Number Of Devices |
|
| Execution Time Per Instruction |
|
| Control Parameter |
|
| Number Of Addresses |
|
| Number Of Instructions Per Ms |
|
| Port Ethernet | 10BASE-T/100BASE-TX |
| Bus Length |
|
| Memory Description |
|
| Control Channels | programmable loops |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic | hazardous location class I division 2 |
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
