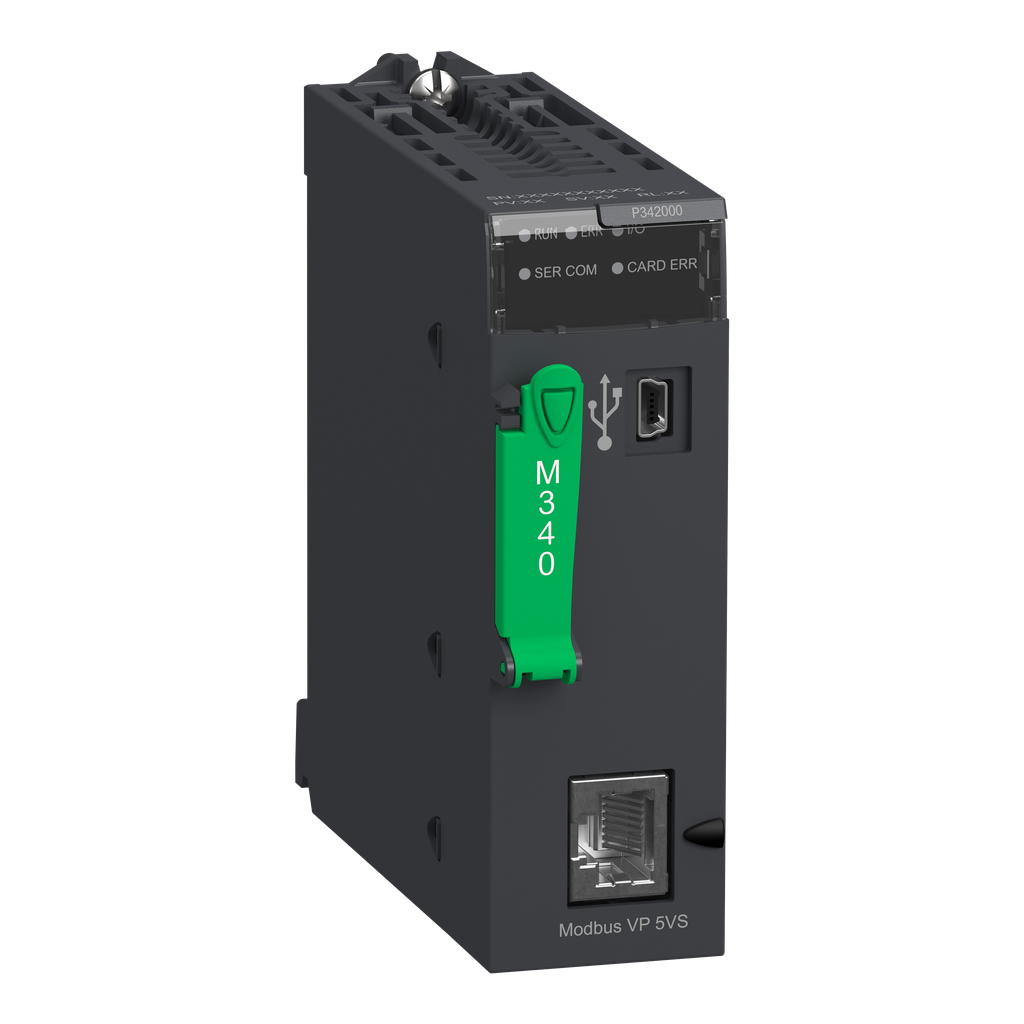

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M340 automation platform |
---|---|
Number Of Racks | 1 |
Product Or Component Type | processor module |
Analogue I/O Processor Capacity |
|
Number Of Slots | 11 |
Monitoring |
|
Number Of Application Specific Channel | 36 |
Discrete I/O Processor Capacity | 1024 I/O single-rack configuration |
Warranty | 18 months |
Number Of Devices Per Segment |
|
Integrated Connection Type |
|
Status Led |
|
Communication Module Processor Capacity |
|
Requests |
|
Supply | internal power supply via rack |
Default Size Of Object Areas |
|
Marking | CE |
Current Consumption | 72 mA 24 V DC |
Net Weight | 0.2 kg |
Application Structure |
|
System Overhead |
|
Maximum Size Of Object Areas |
|
Maximum Tap Links Length |
|
Number Of Devices |
|
Execution Time Per Instruction |
|
Control Parameter |
|
Number Of Addresses |
|
Number Of Instructions Per Ms |
|
Bus Length |
|
Memory Description |
|
Control Channels | programmable loops |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Environmental Characteristic | hazardous location class I division 2 |
Directives |
|
Relative Humidity | 10-95 % without condensation |
Protective Treatment | TC |
Ip Degree Of Protection | IP20 |
