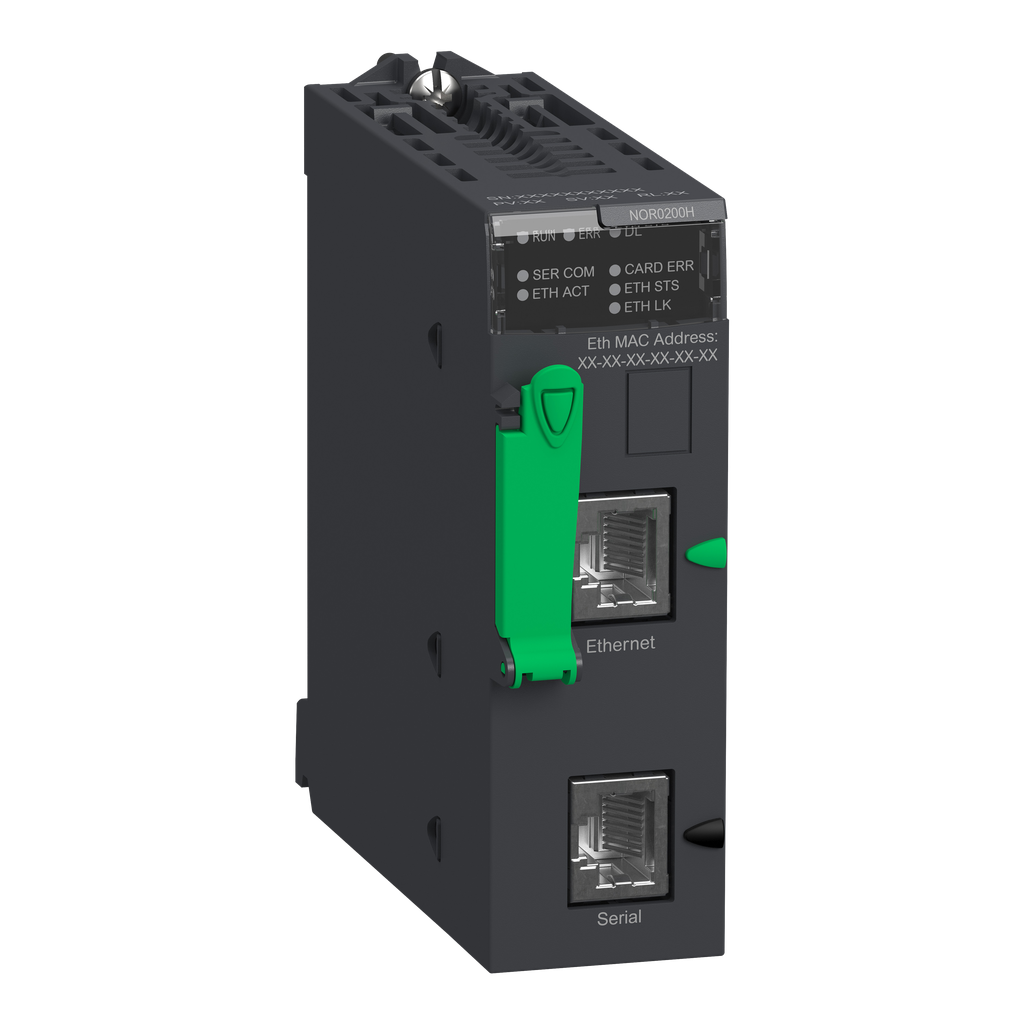

BMXNOR0200H - communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments

BMXNOR0200H

communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments

This product is part of Modicon M340 range, a mid-range PAC for industrial process and infrastructure control. This communication module enables M580 and M340 platforms to use RTU protocol exchange with RTU stations. It is an RTU module with a current consumption of 95mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet RJ45 10/100Mbps and serial RS232/485 RJ45 300/38400bps 1 twisted pair transparent ready class C30 for integrated connections. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash SD memory card (BMXRWS128MWF) 128000kB. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Modicon M340
Product Or Component Type	communication module
Integrated Connection Type	Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
Protective Treatment	conformal coating
Warranty	18 months
Supply	internal power supply via rack
Current Consumption	95 mA 24 V DC
Net Weight	0.2 kg
Communication Service	bandwidth management Modbus TCP messaging DNP3/DNP3 IP protocol IEC 60870-5 -101/-104 protocol time stamped events management external modem management (serial, PSTN, GSM, GPRS/3G) data logging in CSV files Email/SMS notifications web server, rack viewer, data editor BootP, DHCP, FDR client SMTP server, FTP client/server, NTP client, SNMP agent, automatic events backup on power loss multi-protocols support in a single module (master and slave) transparent events routing from remote slaves to SCADA
Local Signalling	for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (green) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) 1 LED (red) for download in progress (DL) 1 LED (red) for serial communication (SER COM) 1 LED (yellow) for data rate (ETH LINK) 1 LED (green)
Module Format	standard
Port Ethernet	10BASE-T/100BASE-TX
Memory Description	supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
Memory Usage	activating the standard web server user web pages storage data logging CSV files storage
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0
Product Certifications	CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 UKCA
Environmental Characteristic	gas resistant class Gx ISA S71.04 gas resistant class 3C4 IEC 60721-3-3 dust resistant class 3S4 IEC 60721-3-3 sand resistant class 3S4 IEC 60721-3-3 salt resistant level 2 IEC 68252 mold growth resistant class 3B2 IEC 60721-3-3 fungal spore resistant class 3B2 IEC 60721-3-3 hazardous location class I division 2
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Relative Humidity	10-95 % without condensation
Ip Degree Of Protection	IP20
